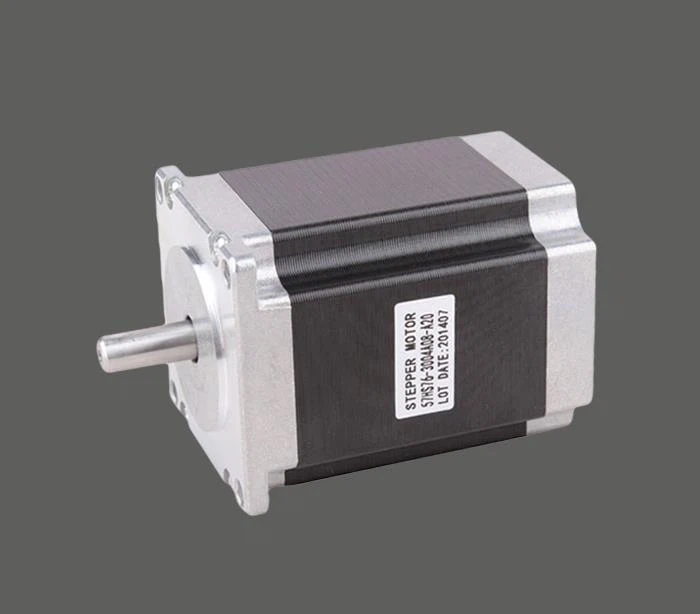

12v Stepping Motor
Classification：Stepping Motor
Application：computer peripherals, mass storage equipment, electronics. Etc
Notes: The motors can be designed according to customer requirements
1.Product Introduction of the 2V Stepping Motor
ST57HS Stepping Motor is one of the main products series of our company, popular in the market. The length of the motor is 41mm. But the length can be designed according to request. We have professional teams to ensure high-quality and best service.
2.Product Parameter of the 2V Stepping Motor
Model No. | Step Angle (°) | Rated Voltage (V) | Rated Current (A) | Phase Resistance (Ω) | Phase Inductance (mH) | Holding Torque (Kg. cm) | Detent Torque (g. cm Max) | Rotor Inertia (gNaN2) | Motor Length (mm) | Leads No. | Motor Weight (Kg) |
57HS41-2004 | 1.8 | 2 | 2 | 1 | 1.2 | 3.2 | 210 | 120 | 41 | 4 | 0.45 |
57HS41-1004 | 1.8 | 5.4 | 1 | 5.4 | 9.5 | 5.5 | 210 | 120 | 41 | 4 | 0.45 |
57HS41-2004 | 1.8 | 2 | 2 | 1 | 2.2 | 5 | 210 | 120 | 41 | 4 | 0.45 |
57HS51-1504 | 1.8 | 2.4 | 1.5 | 1.6 | 3.8 | 8.2 | 360 | 275 | 51 | 4 | 0.65 |

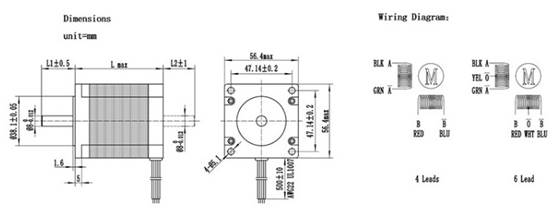

For detail information, please refer to the attachment.
3.Product Feature And Application of the 2V Stepping Motor
It is usually applies to computer peripherals, mass storage equipment as well as electronics fields.
4. Production Details of the 2V Stepping Motor
The motor size and motor material can be designed by request
Custom design: Welcome
5. Product Qualification of the 2V Stepping Motor
Certificate: CCC. ROHS.CE. UL. Etc
According to customer requirement
6.Deliver, Shipping And Serving of the 2V Stepping Motor
Transportation: By air or vessel, according to customer request
Production lead time: 15-40 days after receipt of approval samples and receipts
Loading port: Any port in China
Place of origin: Guangdong China
Packing: Good quality exporting packing style
7.FAQ
Q: What is the warranty for your products?
A: Six months warranty for all electronic products. If any quality problems on our side occurred in this period, we will take on the shipping cost and replacement.
Q: How to choose the suitable stepper motor?
A: There are several important items: size, length of stepper motor, holding torque, voltage, etc. After confirm some them and told us, we can send you the suitable one.
Q: Any other methods to finalize the model?
A: Sure, you can send us the model you are using, we can help you find the suitable one.
Q: Can we have free sample?
A: Yes sure, but please pay the shipping cost by yourself.
