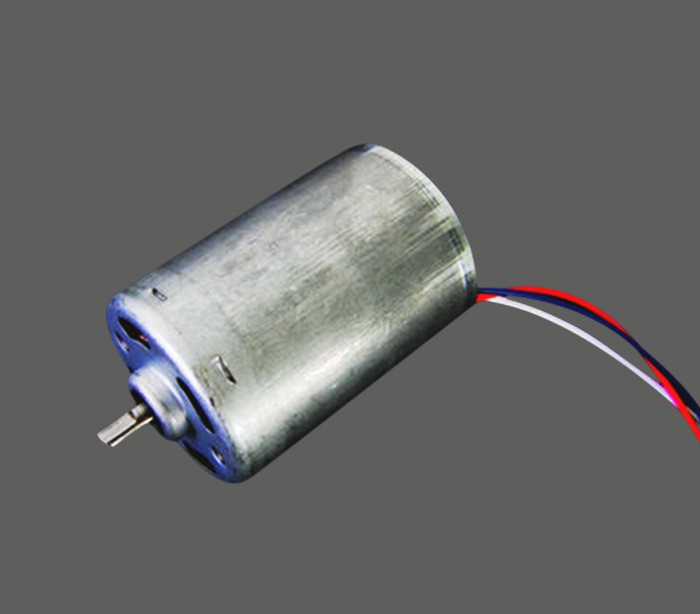

Brushless DC Motor
Also known as synchronous DC motors or electronically commutated motors, the main difference between these types of motors is that they lack a commutator, which is replaced by a servo that can detect and then adjust the angle of the rotor, BLDC motors are robust and safe.
Brushed DC Motor
These are the earliest DC motors, dating back to the motor's original design, and while they are still popular in paper machines, cranes, and rolling mills, they have faded more recently.
Parallel DC Motor
This is a brushed motor with the field winding in parallel with the armature, they have lower current due to the parallel winding, parallel motors find many uses in a variety of applications where constant torque is required, mixers, conveyor belts and cranes are the most depend on them.
Series DC Motors
These are the ultimate breed, the field windings connected in series distinguish them from parallel motors, which means that the armature current does flow through the field windings, resulting in faster speeds, series DC motors are tasks that require high starting torque Ideal.
Direction controller: H-bridge
An H-bridge circuit is one of the easiest ways to control a DC motor, four switches controlled in pairs can be found within such a motor, when either of the two pairs is closed, they immediately complete the circuit and subsequently power the motor, H The bridge can also control the speed.
Speed Controller: Pulse Width Modulation (PWM)
The PWM circuit changes the speed of the motor by simulating the increase or decrease of the power supply. PWM is easy to apply and inexpensive, which is one aspect of the motor speed that can be continuously controlled. These controllers work by sending periodic pulses to the motor, as if the motor is powered by high or low voltage when using the coil inductance of the regular pulses to bring a certain constrained smoothing effect.
Armature Controller: Variable Resistor
This is another way to affect the speed of a DC motor, the current fed through the armature or field coil changes. When the coil current changes, the speed of the output shaft also changes, and the variable resistor can change the current, which can increase the speed.
What to Know When Buying a DC Motor
There are some basic things to consider before buying a DC motor, here are some key factors to consider: the higher the energy, the higher the torque, the energy keeps the net current flowing in one direction, check the recommended DC motor pull in the instruction manual. Electric current powers the motor, too much of it is dangerous as it will damage the motor, make sure you understand its operating and stall currents before using a DC motor controller. Speed is a bit complicated in terms of motors, motors operate efficiently at high speeds, but that can't be done if gearing is required, adding gears doesn't limit the efficiency of the motor. Therefore, torque and speed reductions also need to be considered.
Applications of DC Motor Controllers
There are various DC motors on the market now, we use them widely, at home, DC motors can be used in toys, tools and other household appliances. In industry, their needs include running across carousels to conveyor belts, as well as reversing. DC motors are used to power pumps based on their excellent motion responsiveness and ease of shifting, and they are the first choice for fans due to their energy saving mechanism. DC motor toys have a variety of voltages and therefore require different types of movement and speed. DC motors for electric vehicles are preferred because of their durability and energy efficiency. Electric bikes have DC motors in both the rear and front wheel hubs to achieve the required power levels and torque.
