Meat grinder is a meat processing enterprise in the production process, the raw meat according to different process requirements, processing specifications of different granular meat filling, in order to fully mix with other auxiliary materials to meet the needs of different products.
The meat grinder is a series of products; using the rotating cutting blade and cutting the raw meat under the squeezing pressure of the screw. According to the nature of materials and processing requirements, you can configure the corresponding tools and hole plate, you can process different sizes of particles, to meet the process requirements of the next process.
major function
Made of high quality (cast iron) or stainless steel, processed materials, in line with food hygiene standards. Tool by special heat treatment, superior wear resistance performance, long service life. The machine is simple to operate, convenient disassembly and assembly, easy to clean, process a wide range of products, material processing can well maintain its original various nutrients, preservation effect is good. The tool can be adjusted or replaced according to the actual use requirements.
Usage
All kinds of frozen meat, fresh meat, chicken skeleton, duck skeleton, pig skin, cowhide, chicken skin, fish, fruits, vegetables and so on.
Structure
The meat grinder is mainly composed of feeding mechanism, cutting mechanism and driving mechanism.
Meat grinder structure
1. Rack 2. cutter 3. squeeze meat sample 4. rotary cover 5. grain barrel 6. rack cage 7. hopper 8. reducer 9. large pulley 10. motor 11. triangle belt 12. Small pulley
feed mechanism
Includes hopper 7, header cage 6, and header 5. Its function is to transport the material forward to the cutting mechanism, and to squeeze the material at the front end.
Cutting mechanism
Including squeeze meat template 3, cutter 2, spin cover 4. Its function is to cut the material squeezed into the human sample hole. There are many kinds of sample hole eye specifications, which can be replaced at any time according to different process requirements.
drive mechanism

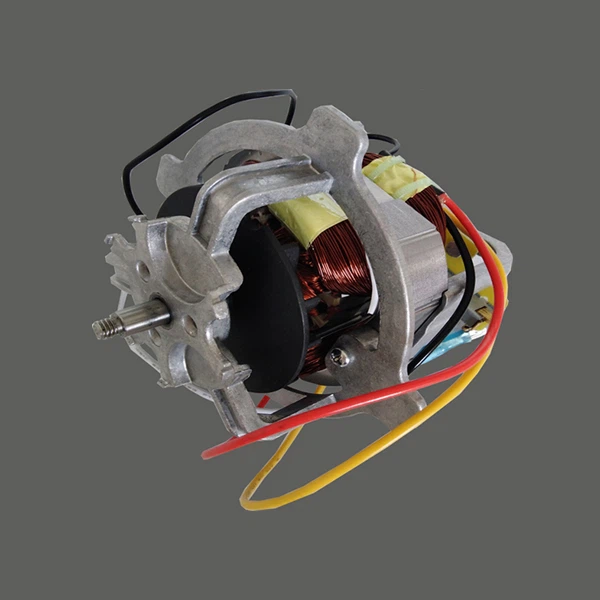

Including motor, pulley, reducer, frame, etc.
