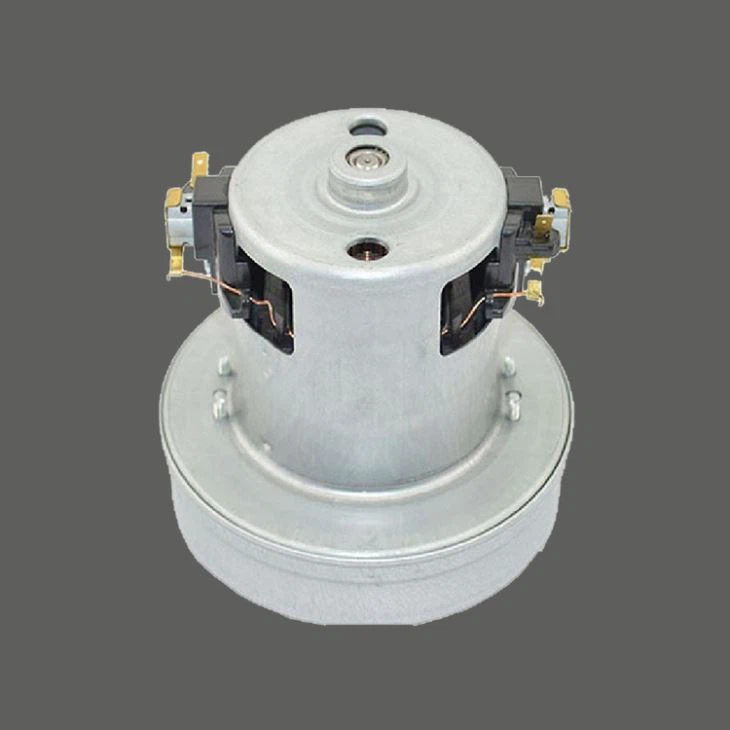

110V Vacuum Cleaner Motor
Classification：Universal Motor
Application：Cleaner, Sweeper, Aspirator, Dust catcher, Dust collector, Road sweeper, Vacuum Cleaner, Etc
Notes: The motors can be designed according to customer requirements
Product Feature And Application
Typical Application Examples: vacuum cleaner motor
Characteristics: High-precision and low-noise
Product Parameter
Specification | Model | TW-108 | TW-108 | Tolerance Value |
Voltage(V) | 220 230 240 100 110 120 | 220 230 240 100 110 120 | / | |
Frequency(Hz) | 50/60 | 50/60 | / | |
Input (W) | 900 | 1000 | ±10% | |
Max Vacuum Degree(KPa) | 21 | 22 | -5% | |
Max Air Quantity(m3/min) | 2.2 | 2.3 | -8% | |
Temp.Rise(K) | <95 | <97 | / | |
Noisy(dB) | 100 | 101 | / | |
Sparkle Grade | <2 Level | <2 Level | / | |
Insulation Grade | B | B | / | |
Max Eff.(%) | 35 | 35 | -10% |
Specification | Model | TW-151 | TW-151 | Tolerance Value |
Voltage(V) | 220 230 240 100 110 120 | 220 230 240 100 110 120 | / | |
Frequency(Hz) | 50/60 | 50/60 | / | |
Input (W) | 1200 | 1400 | ±10% | |
Max Vacuum Degree(KPa) | 24 | 25 | -5% | |
Max Air Quantity(m3/min) | 3.2 | 3.3 | -8% | |
Temp.Rise(K) | <85 | <85 | / | |
Noisy(dB) | 96 | 98 | / | |
Sparkle Grade | <2 Level | <2 Level | / | |
Insulation Grade | B | B | / | |
Max Eff.(%) | 35 | 35 | -10% |
Product Qualification
Certificate: CCC.ROHS. CE. UL. Etc
According to customer requirement
Deliver, Shipping And Serving
Production time: 15-40 days after receipt of samples and receipt
Port of loading: Any port in China
Payment method: 30% T/T deposit,70%T/T before shipment or Full L/C at sight
Origin: Guangdong, China
7.The power of the 110V Vacuum Cleaner Motor Advantage
Vacuum cleaners are one of the indispensable household appliances in our life, and the most important component is the motor. Among them, the series motor is the most commonly used motor in vacuum cleaners. So, how does a series motor work in a vacuum cleaner ?
However, in practical applications, it is impossible for the series motor to be directly connected to the power supply, because this will cause the motor to rotate at a very high speed, which will cause the vacuum cleaner to lose control. In order to solve this problem, we need to adjust the speed of the motor to ensure that the motor can work stably.
In vacuum cleaners, electronic speed controllers are usually used. The electronic speed controller is a device that controls the speed of the motor. It can change the speed of the motor by adjusting the current. The working principle of the electronic governor is to use electronic components (such as transistors, etc.) to adjust the input voltage of the motor to control the torque and speed. When the motor speed is too high, the electronic governor will automatically reduce the voltage, thereby reducing the motor speed; when the motor speed is too low, the electronic governor will increase the voltage, thereby increasing the motor speed.
