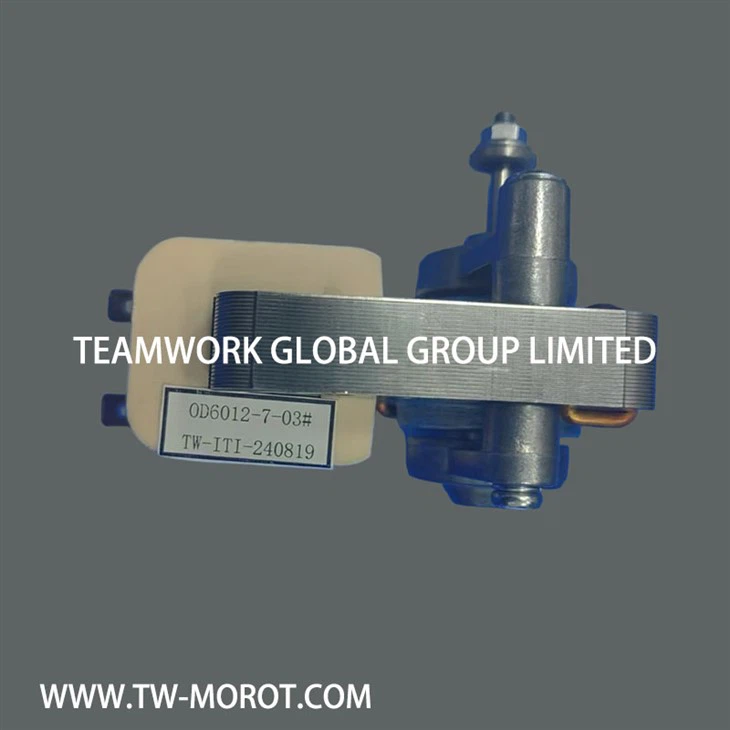

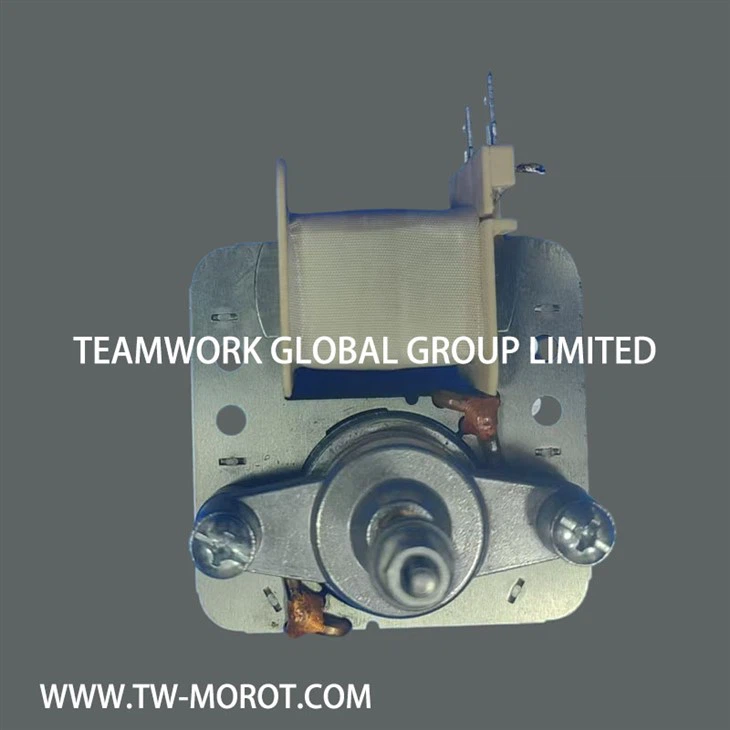

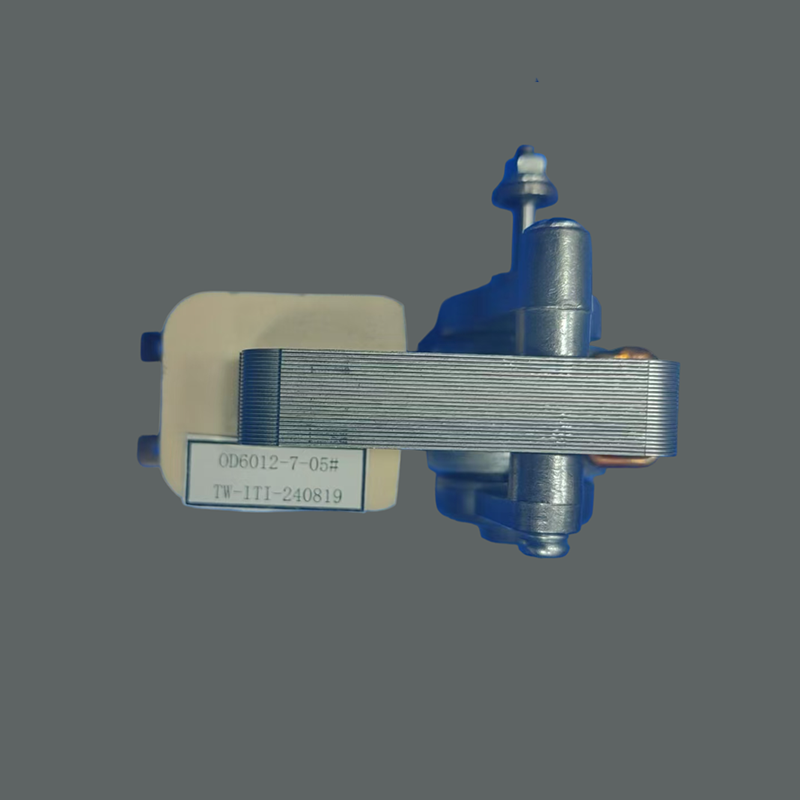

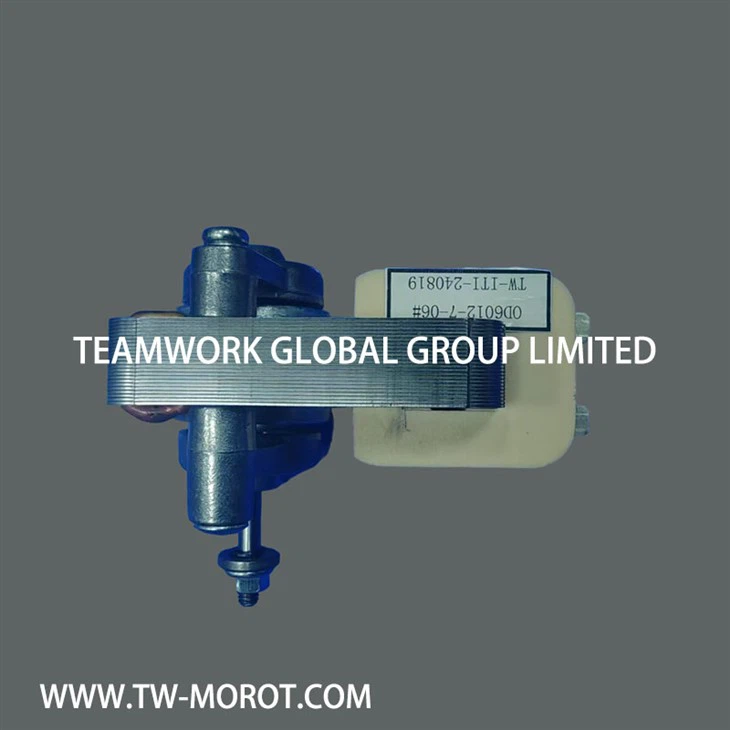

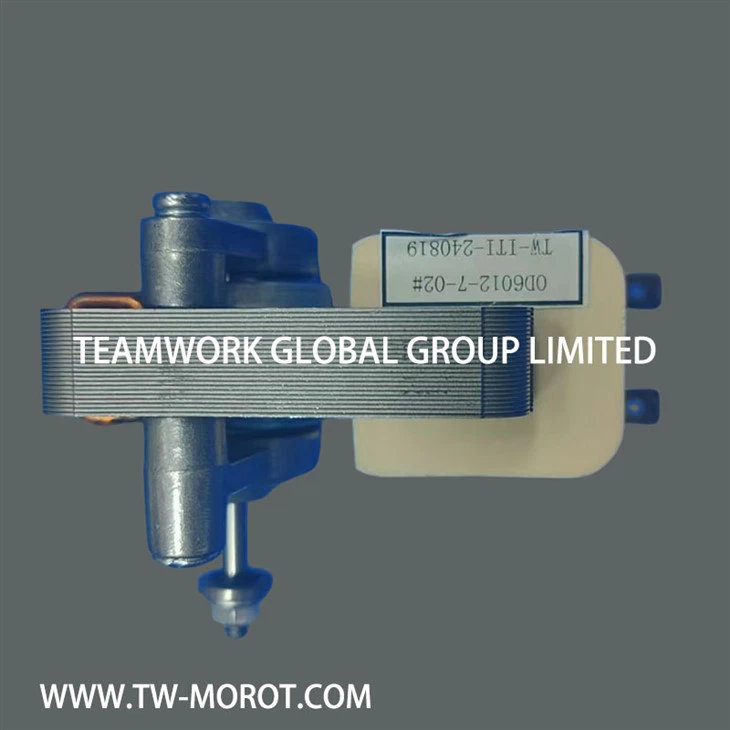

Shaded Pole Asynchronous Oven Motor

1.Introduction of Shaded Pole Motor Products

This product is primarily utilized in ovens and is also extensively employed in numerous industries, including automobiles and automotive parts, smart kitchen and bathroom appliances, household appliances, medical devices, communication equipment, industrial equipment, instruments and meters, electrical engineering and power, etc. It possesses the capability of withstanding high temperatures and can function normally over an extended period in high-temperature surroundings. It is mainly applied in equipment such as cooling and heat dissipation, ventilation and air exchange. It is particularly well-suited for products like warm air blowers, fireplaces, refrigerators, outdoor barbecues, ventilation fans, infrared ovens, air curtain machines, water heaters, air coolers, dryers, etc. Customization can be carried out in accordance with the diverse needs of different customers.

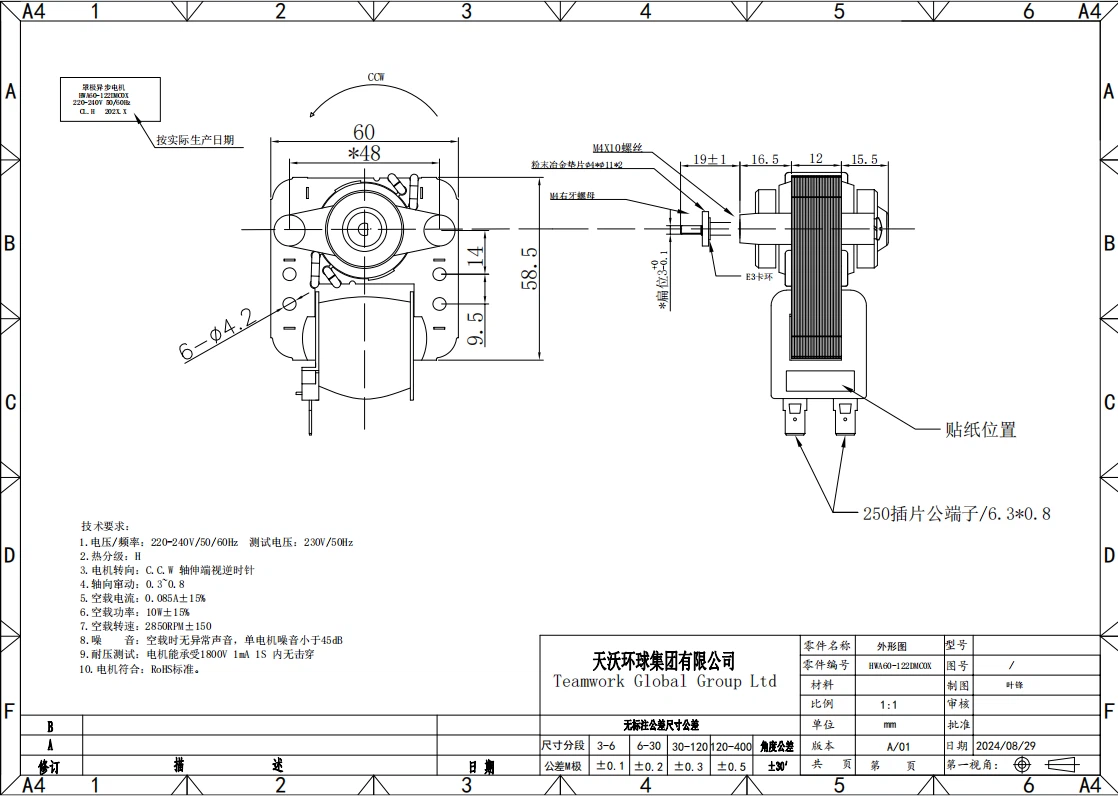

2. Product parameters

3.Features:

(1).The product boasts low vibration, high efficiency, and a high-performance protection level.

(2). The structural design is rational, the lead wire direction is flexible, and the product defect rate is low.

(3).The structure is simple, the manufacturing process is convenient, and no separate windings and capacitors are added. It is suitable for large-scale production and has a low cost.

(4). Low noise is achieved, and there is no disturbance without a walkie-talkie.

(5). The efficiency and power factor are rather low, and the slip is considerable

(6). Low operating performance and guiding performance. The operating and guiding performances are poor.

4. Product qualifications of shaded pole motors

Certificates: CCC, ROHS, CE, UL, etc.

5.Delivery, Shipping and Service of Shaded Pole Motors

Transportation method: By air or by ship as per customer's requirements

Sample delivery cycle: 7 - 15 days

Origin: Guangdong, China

F&Q

1.Why can't the motor start after being powered on?

It could be that the main winding is either short-circuited or open-circuited; the shading coil is open-circuited, the shaft is bent and deformed, the bearing is overly tight or damaged, the end cover is not installed properly, the rotor bars are broken, or the voltage is too low.

2.Why is the motor speed low or uneven?

Low voltage; incorrect wiring or short circuit in the main winding; worn bearings, desoldering or broken bars of the rotor conductors, and so on.

3.What are the reasons for the motor to get hot or make noise during operation?

Overload; incorrect connection or short circuit of the windings; damaged bearing, inflexible shaft, broken rotor bars, and the intrusion of external paper scraps and plastic films into the motor interior, rubbing against the rotor and generating sounds, and so on.
