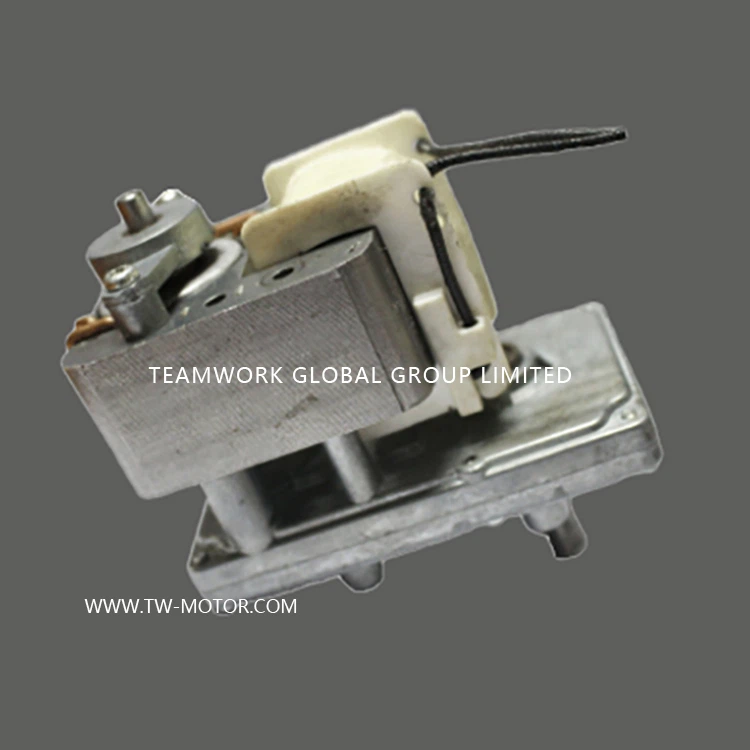

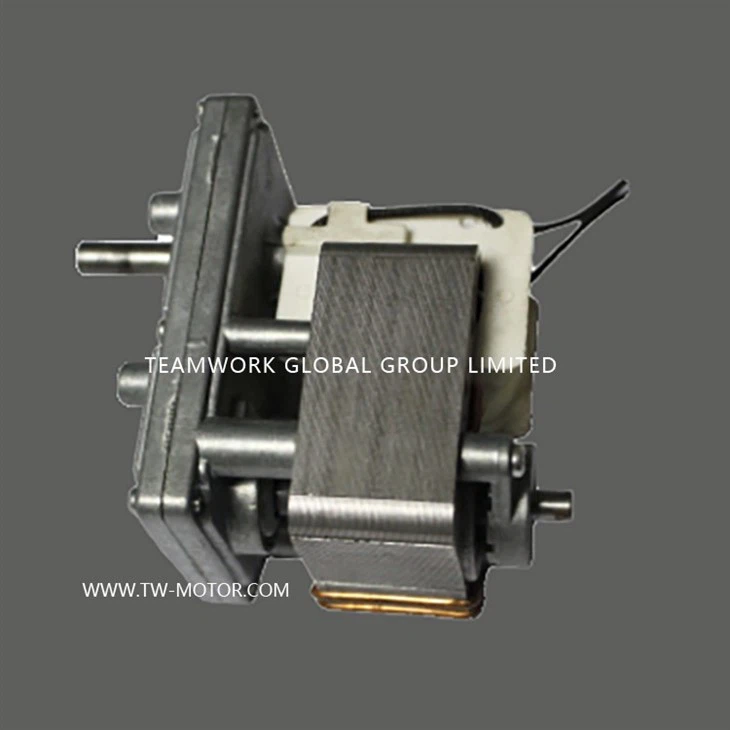

Household Gas-Fired Oven Motor

1.Product Introduction

This household gas oven shaded pole motor has only a main winding, no start winding.

But at the poles of the stator has a short circuit ring, also known as the "electrode cover ring",

When the motor is energized, the main magnetic pole part generates a magnetic field, which is pulsating and the motor does not rotate.

However, the short circuit current is generated in the short circuit ring, so that the magnetic field generated by the cover part on the magnetic pole lags more than the uncovered part, so the magnetic pole forms a rotating magnetic field, and the motor rotor rotates and starts the work.

In fact, this short-circuit ring is equivalent to the starting winding of the motor.

This household gas oven shaded pole motor usually adopts cage bute cast aluminum rotor. According to the different stator shape structure, it is divided into convex pole cover motor hidden pole cover motor.

When the excitation coil of the pole motor is energized, the magnetic flux of the pole motor is moving in space, from the end cover part to the cover part, like a rotating magnetic field, so that the cage structure rotor of the starting torque, and also determines the turn of the motor from the end cover part to the cover part.

2.Product Performance

The performance of the shaded pole motor is mainly shown in the following aspects:

High efficiency performance: Due to its unique structural design, the motor efficiency of the motor is higher than the traditional motor with the same power, which can effectively reduce energy consumption.

High torque density: The hood motor can provide higher torque density, providing greater torque output in the same size motor.

High precision: The rotor structure design of the hood pole motor can provide higher motor positioning accuracy, thus reducing the vibration and noise of the motor during operation.

High-speed performance: The rotor structure of the hood motor can effectively correct the asymmetric situation at high speed rotation, so as to ensure the stability of the motor when running at high speed.

Ultra-silent performance: the structure design of the hood motor makes it reduce the noise and resonance in the operation of the motor, and effectively improve the mute performance of the motor.

3.Product Application

Application：Applied in home appliances, automatic control equipment, electric oven, gas oven, etc

4.Production Details

5.Product Qualification

Certificate:CCC.ROHS.CE.UL.Etc

6. Deliver, Shipping And Serving

Generally it is 10-15 days if the goods are in stock.20-30 days for one 20ft container, delivery time based on product quantity.

FAQ

Q:Do you accept OEM/ODM?

A: Sure,Our R&D team have 7 experienced enginners,tell us your needs and we could make it.

Q:What i need to provide if i want to make a customized order?

A: Please kindly tell us the voltage,speed,torque and overall dimension.

Q:What if i don't know the above data?

A: Please tell us the usage we will give you professional advance.

Q: How about Sample order?

A: Sample is available,the extra fee due to the model type.

Q:Do you have the item in stock?

A:I am sorry we donot have the item in stock, All products are made with orders.

Q:Do you provide technology support?

A:YES. Our company have design and development team, we can provide technology support if you need.

Q:How to ship to us?

A:We will ship the goods to you according to the DHL or UPS or FEDEX etc account you provide.
