Table Top Nebulizer Motor

Medical nebulizer is a kind of medical equipment, which is used to form mist substance after mixing liquid medicine, oxygen and air, which is convenient for patients to inhale directly through the respiratory tract to achieve the therapeutic effect. The nebulizer includes water channel, oxygen pipeline, medicine pipeline, oxygen flow measuring device, medicine water inlet, nebulizer head and other parts.

Shaded pole motor is a synchronous motor installed directly on the shaft, in which the stator part is an iron core with coils around it, and the rotor part is a magnetic steel rod with permanent magnets. The phase and frequency of the current can control the speed and speed of the rotor. direction. Shaded pole motors are widely used in medical equipment, electric vehicles, and industrial automation due to their minimalist structure and high efficiency.

In the medical nebulizer, the main function of the shaded pole motor is to drive the nebulizer head to generate airflow, and spray the drug liquid through the nebulizer head to form a nebulized substance. The specific working principle is: when the current passes through the stator windings, a magnetic field is generated, and the magnetic field will attract the permanent magnet on the rotor to make the rotor rotate; at the same time, the drug liquid is mixed with oxygen and air, and then sent to the head of the nebulizer. The mist-like substance is formed in the airflow and enters the lungs with the patient's breath to play a therapeutic role.

It is worth noting that the shaded pole motor in medical nebulizers needs to have stable performance and high energy consumption, because its operating frequency is as high as several thousand hertz, and once it goes out of control, it may have a serious impact on the health of patients. Therefore, when choosing a shaded pole motor, it is necessary to pay attention to its output power, speed range, temperature and voltage adaptability and other factors to ensure the safe and stable operation of the atomizer.



Product introdution

Model: SP6138-220
Features: smooth operation, stable performance, low noise, long life
Application: medical nebulizer, sputum suction device.

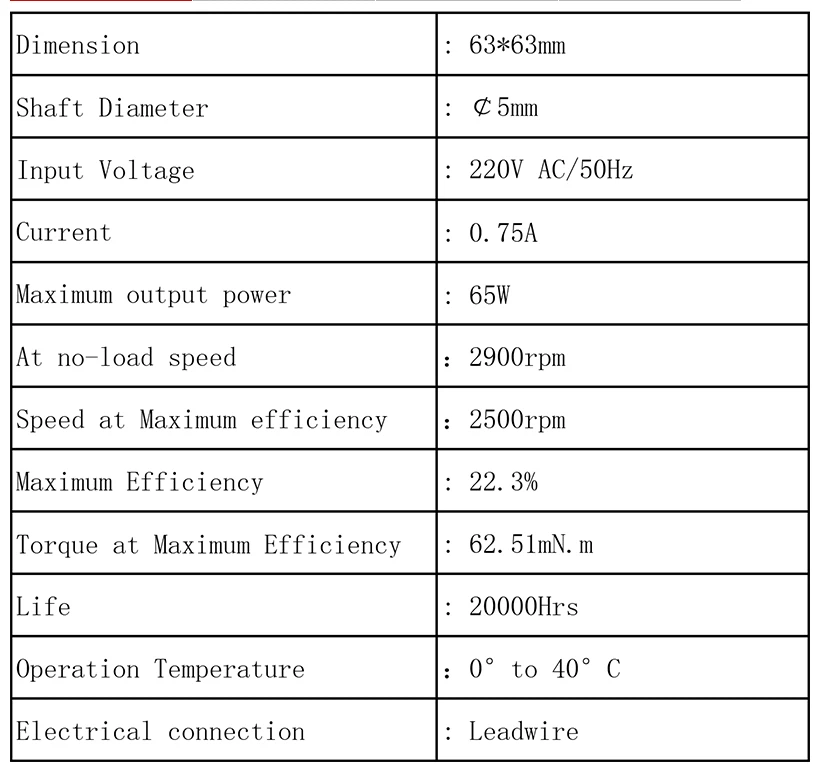

Specification:

The medical atomizer motor is one of the commonly used accessories in medical equipment. It is mainly used to convert liquid medicine into tiny particles through atomization technology, which is convenient for patients to inhale and treat. The shape, material, size and performance of this motor are all very important. The following will introduce the composition characteristics and performance of the medical nebulizer motor.

Composition characteristics of medical nebulizer motor



A medical nebulizer motor usually consists of the following components:



•  Motor body: The body of a medical nebulizer motor usually consists of an electromagnet, rotor, stator and casing. They are all made of high-quality metal materials, which can withstand long hours of high-speed operation and continuous working hours.



•  Drive gear set: The gear set of the medical nebulizer motor is responsible for driving the nebulizer, usually consisting of a reducer, gears, chains and transmission belts.



•  Rated voltage: The rated voltage of the medical atomizer motor is usually between DC 3V and 12V, and the high-voltage motor is generally within AC220V.
•
