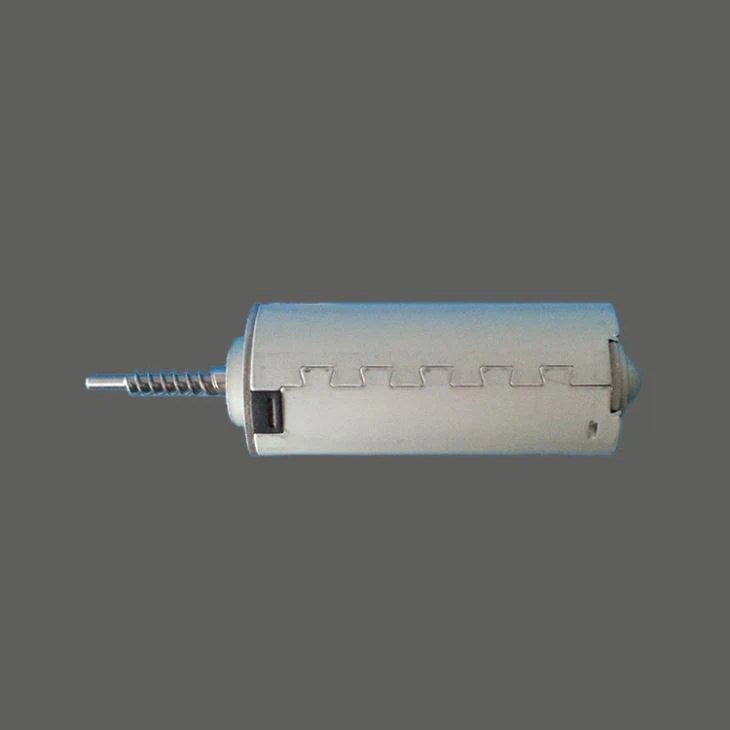

Dc Actuator Motor

DC actuator motor

1.  Structural composition

DC actuator motor is a control device for opening, closing and adjusting valves. It has the advantages of flexibility and high precision and is widely used in various automation systems. It is mainly composed of housing, motor, reducer, transmission shaft, sensor and other components. The motor is the core part of the DC power supply, which can drive the reducer to rotate, thereby pushing the transmission shaft to operate the valve. The sensor can provide feedback control to the actuator motor, allowing it to achieve more precise opening and closing of the valve. DC actuator motors have compact structure, small size, large output torque, high reliability, and have broad application prospects.

2. Product Parameter

3. Product Feature

1. DC actuator motor is highly efficient. Due to the simple structure of the DC actuator motor and its high energy conversion efficiency, it can start, stop and execute various motion processes in a relatively short time. At the same time, DC actuator motors have high power density, can output greater torque and speed, and can meet various application requirements, such as precision machining, automatic control, etc.

2. The DC actuator motor has a high level of detail. Due to the flexible control method of the DC actuator motor, precise position control and speed control can be achieved, and it is suitable for precision machining, automatic control, vehicle driving and other fields in various environments. The DC actuator motor has high feedback control accuracy, which can achieve very small position differences and speed differences, avoiding mechanical damage and excessive wear.

3. The DC actuator motor has high power. Since the rotating parts of the DC actuator motor are not affected by additional circuits, it can output extremely high power in a small volume, and the power can be adjusted according to actual needs. This is very important for some application fields with high accuracy, speed and load requirements, such as high-speed electric vehicles, robots, high-precision machining, etc.

4. The DC actuator motor has a short development time and can quickly adapt to new technologies and market demands. Due to the flexible control method of the DC actuator motor, it can be adjusted, changed, and upgraded according to actual needs to adapt to different environments and applications. Moreover, the development work of DC actuator motors is often completed by software engineers and hardware engineers.

4.application

Application: Power Distribution,Equipment, Scooter

5. Production Details

Outline drawing

Performance chart

6. FAQ

Q:Is there a MOQ for your motors?

A:Yes. The MOQ is between 1000~10,000pcs for different models after sample approval. But it's also okay for us to accept smaller lots like a few dozens, hundreds or thousands for the initial 3 orders after sample approval. for samples, there is no MOQ requirement. But the less the better (like no more than 5pcs) on condition that the quantity is enough in case any changes needed after initial testing.

Q:When will make delivery ? 

A: -Sample Order: 1-3 days after receipt of the full payment.   

-Stock Order: 3-7days after receipt of the full payment 

-OEM Order: 12-20days after receipt of the deposit.  

Q:Are you motors reversible?

A:For all the low voltage dc motors, they are reversible. For the high voltage dc motors, if clients only need to run the motor in one direction, we'll shift the brushes by some small angle in reference to the permanent magnet . That can favor the required one direction of rotation, but the other direction has higher sparkling and worse performance. The stall torque for the favor rotation will be less, but the max. Efficiency point will be higher.

Q:Is it possible for you to develop new motors if we provide the tooling cost?

A:Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange.
