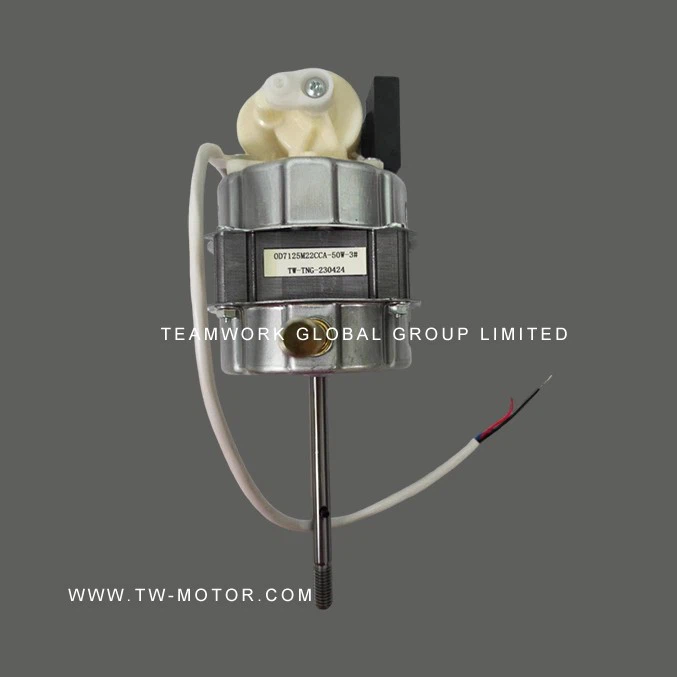

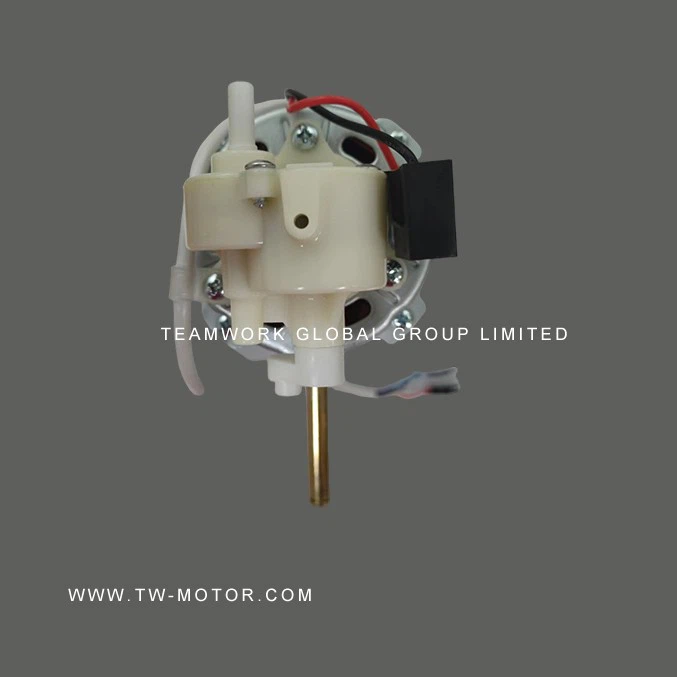

Household Fan Motor

Household Fan Motor



The working principle of the household fan motor is to convert electrical energy into mechanical energy, and generate airflow through the rotation of the fan blades to lower the room temperature. The motor generates a rotating magnetic field through the current passing through the coil, which interacts with the permanent magnet inside the rotor to generate torque to rotate the rotor. The rotor drives the fan blades to rotate, and by accelerating the movement of the air, an airflow is formed to blow away the hot air in the room and replace it with fresh air. Household fan motor not only has high power, fast wind speed and low noise, but also has continuous and stable performance. It is one of the important equipment necessary for cooling in summer.



1.Product Introduction



Household fan motors are mainly divided into two types: brushed motors and brushless motors. It adopts the principle that the curved brush contacts the rotating sub-stage and the body to generate friction, and is close to the alloy rotary wheel to realize the rotation. The advantages of brushed motors are high power and quick start, but they are noisy and easy to burn out the brushes.



The brushless motor uses an electronic controller to adjust the positive and negative rotation and speed of the motor. It uses a permanent magnet and internally winds three induction pole coils with balanced phase currents to generate torque. It is mainly composed of a rotor, a stator and a detection device. , The rotor permanent magnet is made of permanent magnet material, there is no carbon brush that is easy to burn, so it has a long service life, low noise and high power utilization rate. At present, most household fans on the market use brushless motors.





2. Advantages



1. Low noise: Since household fan motors use brushless technology, compared with brushed motors, the noise during operation is smaller. This feature makes the home fan not very noisy when running, avoiding the problem of affecting various activities in the home.



2. High efficiency: One of the advantages of brushless motors is that they are more efficient than brushed motors. Due to the simple structure of the magnetic pole coil adopted, the position of the rotor can be adjusted, thereby improving the efficiency.



3. Easy to control: Since the electronic control system of the household fan motor allows remote control and can adjust the speed of the motor, the adjustment of the fan is smooth and more in line with the needs of users.



4. Energy saving and environmental protection: In addition, due to higher efficiency, household fan motors use much less power, which can save more energy during long-term use, and the environmental protection effect is also more significant.



3.Applications

1. Conventional motor fans: Conventional motor fans mostly use DC or AC power, and use large rotors to push airflow to form wind. Such motors are usually simple and inexpensive.





2. Bladeless fan: Through the precise calculation of the designer, the bladeless fan sets the motor in the fan cover to maximize efficiency and provide users with softer wind in the form of wind media. Because of its rotorless design, this fan is safer for families with small children and pets.





3. Smart fans: Smart fans come with a touch-operated screen and voice control functions, and can be connected to a home wireless network and controlled through a smartphone app. This kind of fan usually has more functions, such as thermometer, hygrometer, shaker, timer, etc., suitable for users who pursue high technology and convenience.





4.FAQ



Q:What kind of motor is used in fans?

A:In conventional ceiling fans, single phase induction motor is used. These motors consume minimum power and hence, are also known as fractional kilowatt motors. A single phase induction motor requires only one power phase for operating. It converts the electrical energy from the power input into mechanical energy.



Q:What is a fan motor?

A:Fan motors are very simple in construction. They consist of a synchronous or asynchronous electric motor, with a fan wheel of the associated shaft, and the connections for the lines. However, DC motors are used (e.g. in computers or in a car).



Q:How long is the life of a household fan motor?
A: The life of the household fan motor is related to the frequency of use and maintenance. If you pay attention to maintenance during use, regularly clean the motor, replace the power supply, etc., the life of the fan motor can reach more than 5 years.
