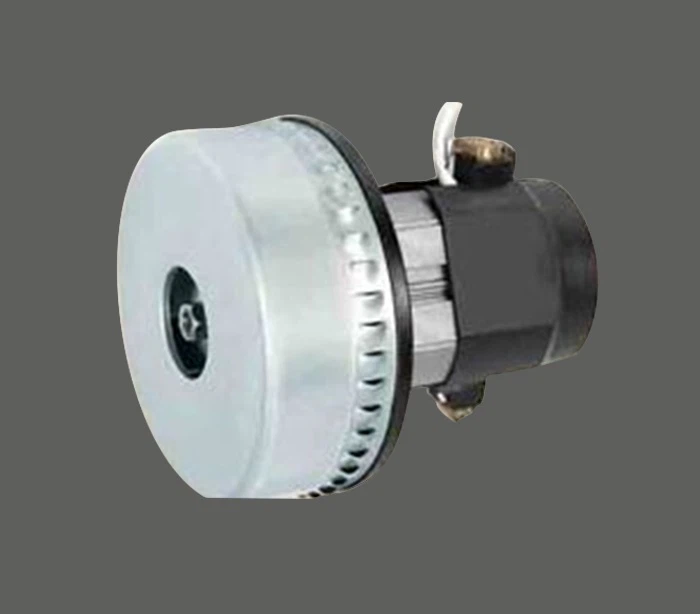

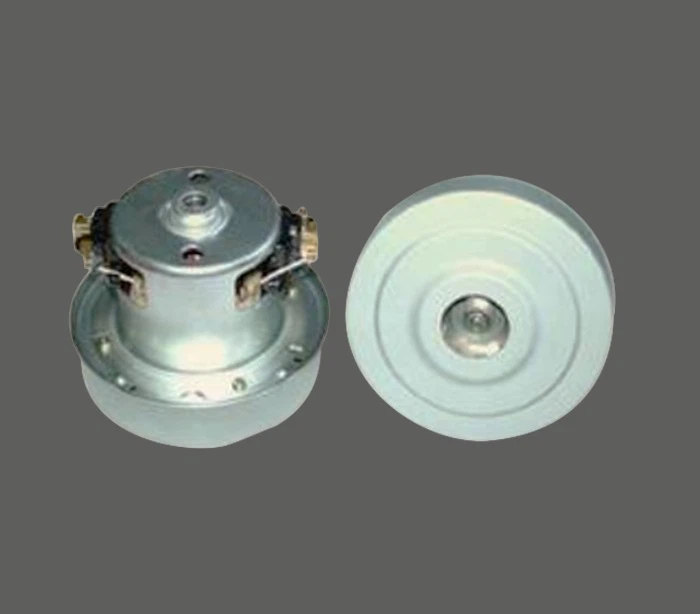

Low Loisy Cleanner Motor
Classification：Universal Motor
Application：Vacuum Cleaner
Notes: The motors can be designed according to customer requirements
At present, our company focuses on the production of micro DC motors and AC series motors. Products are widely used in household appliances, power tools, medical equipment, general equipment, office equipment and automation equipment.
Product quality and stability, consistency, and performance indicators to meet international standards, products are sold worldwide, domestic and foreign users. We will continue to strive for technology, strive to improve the quality excellent, services do our best.Located in Shenzhen, TEAMWORK GLOBAL GROUP LIMITED is a professional manufacturer of universal motors. We have 20 years of experience in electric motors and have good reputation in this filed. We also supply gear motor and brushless motor.
1. Product Introduction of the AC universal motor
We supply electric motor including induction motor and DC motor and so on. We have 20 years of experience in electric motors and have good reputation in this filed.
2. Product Parameter of the AC universal motor
Specification | Model | TW-135 | Tolerance Value | ||||
Voltage(V) | 100 110 120 220 230 240 | 100 110 120 220 230 240 | 100 110 120 220 230 240 | 100 110 120 220 230 240 | / | ||
Frequency(Hz) | 50/60 | 50/60 | 50/60 | 50/60 | / | ||
Input (W) | 1500 | 1600 | 1700 | 1800 | ±10% | ||
Max Vacuum Degree(KPa) | 24.5 | 25.5 | 26 | 26.5 | -5% | ||
Max Air Quantity(m3/min) | 2.7 | 2.8 | 2.9 | 3 | -8% | ||
Temp.Rise(K) | <85 | <85 | <85 | <85 | / | ||
Noisy(dB) | 100 | 101 | 100 | 101 | / | ||
Sparkle Grade | <2 Level | <2 Level | <2 Level | <2 Level | / | ||
Insulation Grade | B | B | B | B | / | ||
Max Eff.(%) | 35 | 35 | 35 | 35 | -10% | ||
Specification | Model | TW-144 | TW-144 | Tolerance Value |
Voltage(V) | 220 230 240 100 110 120 | 220 230 240 100 110 120 | / | |
Frequency(Hz) | 50/60 | 50/60 | / | |
Input (W) | 1200 | 1400 | ±10% | |
Max Vacuum Degree(KPa) | 22 | 23 | -5% | |
Max Air Quantity(m3/min) | 3.1 | 3.2 | -8% | |
Temp.Rise(K) | <85 | <85 | / | |
Noisy(dB) | 99 | 100 | / | |
Sparkle Grade | <2 Level | <2 Level | / | |
Insulation Grade | B | B | / | |
Max Eff.(%) | 32 | 32 | -10% |
3. Product Feature And Application of the AC universal motor
Typical Application Examples: vacuum cleaner motor
Characteristics: High speed, long service life, high torque
4. Production Details of the AC universal motor

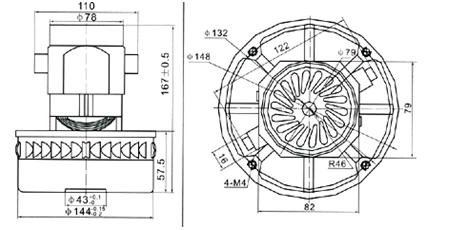

The motor size and motor material can be designed by request
Custom design: Welcome
5. Product Qualification of the AC universal motor
Certificate: CCC.ROHS. CE. UL. Etc
According to customer requirement
6.Deliver, Shipping And Serving of the AC universal motor
Production lead time: 15-40 days after receipt of approval samples and receipts
Transportation: By air or vessel, according to customer request
Sample lead time: 7-15 days
In production, we demand not only quantity but also quality.
7.FAQ
Q: What is your MOQ?
A: 100pcs. Support LCL, FCL. It also depends on different model.]
Q: Are you a trade company or a manufacturer?
A: We are an ISO, SGS, CE, CCC, Alibaba approved manufacturer specialized in motors for home/hotel/supermarket appliance, including AC Motors, Series Motors, DC motors, brushless motors and induction motors. The motors applied in wet & dry utility, vacuum cleaners, mini vacuum cleaners, industrial vacuum, carpet extractor, spa bath pumps, juicers, blenders, food processors, coffee makers, ice crusher, shaver, sewing machines, line cutting machines, gym equipment and electric hand dryers etc.
Q: Can we type our brand on it?
A: Yes of course.
Q: Where is your loading port?
A: Ports in Shenzhen also available.
Q: Are you trading company or manufacturer ?
A: We are the manufacturer with 11years experiences.
Q:What's your main products?
A: DC Micro Motor and Gear Motor,Auto dc motor, Electric motor, Gear Motor, DC Motor, Brush DC motor, Brushless DC motor,Spur Gear motor, Micro Motor, Vibration motor etc.
Q:What's the main usage of the micro dc gear motor?
A: Our motor widely used in Home Appliance,Office Equipment,Health-care appliance,Sanitation industry, High-class toy,Banking System,Electronic and electrical tools,automation industry, bank equipments,payment equipments,vending machines,power door lock,electric door lock.
Q:Do you accept OEM/ODM?
A: Sure,Our R&D team have 7 experienced enginners,tell us your needs and we could make it.
Q:What i need to provide if i want to make a customized order?
A: Please kindly tell us the voltage,speed,torque and overall dimension.
Q:What if i don't know the above data?
A: Please tell us the usage we will give you professional advance.
Q: How about Sample order?
A: Sample is available,the extra fee due to the model type.
Q: Which shipping way is available?
A: Sample and small order by DHL, UPS, FedEx, TNT, EMS, China Post more fast but expensive.
Q:How long is the delivery for your industrial part?
A: Generally speaking, it will take us 15 working days for machining parts and 25 working days for stamping parts products. But we will shorten our lead time as soon as possible according to customers' demands.
Q:Can you offer some special people to work with us in placing mass orders?
A:Yes,we can. However, it depends on how big of your mass orders quantity.
Q: How far from your factory to the loading port?
A:It only takes 1 hours from our factory to our local loading port. And it is very convenient for us to make the transportation.
Q:Do you accept any agent in Europe?
A:Yes, we can discuss agent case after we continuous making mass orders. However, we must confirm the MOQ mass order quantity before we sign the contract.
Q: How long can make 20Kpcs garage gate motor?
A:It usually take around 20-30 days to make this mass order. at the beginning, it takes longer time, but when we making continuous mass order. It will be much shorter time.
8.How to fix a broken hair dryer?
01 The hair dryer is completely unresponsive
The phenomenon of this situation is: the motor does not turn when the hot air gear is turned on, and the heating wire is not hot and there is no cold air.
Step 1: Check whether the home fuse is blown, and replace it if it is blown. If not, continue to check the steps below.
Step 2: Check whether the contact between the hair dryer plug and the switch is good, whether the plug is inserted properly, if not, insert the plug to ensure that the plug is fully inserted into the switch.
Step 3: Check whether there is a dark break inside the power cord of the hair dryer, and whether the inner welding of the hair dryer handle is de-soldered. If these situations occur, quickly repair or replace the power cord. If there is a problem with the handle, you need to disassemble the handle to re-solder the solder joints.
Step 4: Check whether the selector switch is seriously oxidized, and whether there is poor contact or breakage. The switch needs to be rubbed and replaced if any. 02 The hair dryer only generates heat and no wind
The general phenomenon of this situation is: the heating wire of the hot air gear is hot, but the motor does not rotate, and the front tube is hot but there is no hot air.
Step 1: Check whether the lead wire of the blower motor is desoldered or broken. If there is, the lead wire of the motor needs to be welded.
Step 2: Check whether the switch that controls the motor is blackened or seriously oxidized to see if it is a switch problem. If so, replace the motor switch.
Step 3: Check whether the motor frame or the fan blade is deflected, displaced or deformed due to collision, which will result in no hot air output, and the fan blade needs to be replaced.
Step 4: Check whether there is any debris between the motor spindle and the rotor. Generally, debris will cause the blades of the blower to not rotate. If so, clean up the clutter.
Step 5: Check whether the motor spindle and rotor are touching, if so, disassemble and re-install the two positions.
3 The hair dryer is windy but not hot
The phenomenon of this situation is: the hot air gear motor works normally, but the heating wire is not hot, only cold air is blown out.
Step 1: Check whether the lead-out part of the heating wire is off or broken.
Step 2: Whether the switch that controls the hot air is in poor contact, if so, replace the hot air switch.
Step 3: Check whether the heating wire is burned out. If the heating wire is burned out, you should immediately replace the heating wire or find a way to connect it.
