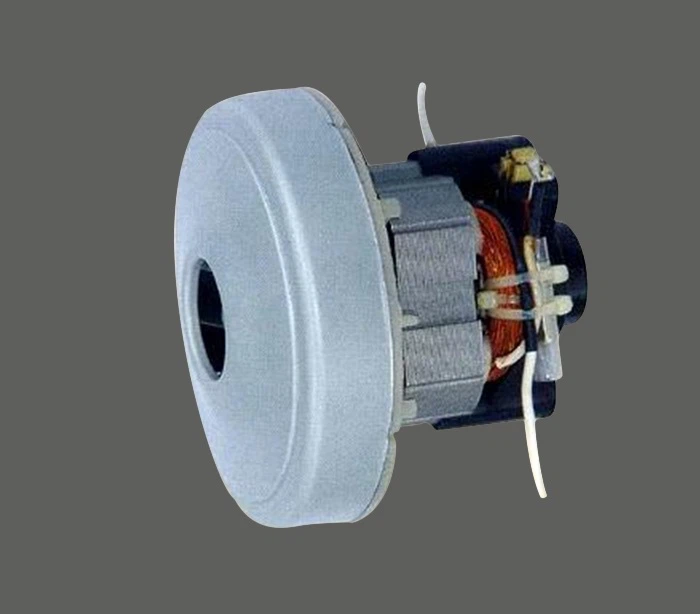

Dust Cleanner Motor
Classification：Universal Motor
Application：Vacuum Cleaner
Notes: The motors can be designed according to customer requirements
1. Product Introduction of the High Speed AC Universal Vacuum Cleaner Motor
Dust Cleaner Motor is the heart of dust cleaner, the main types of dust cleaner motor are: dry dust cleaner motor (THRU FLOW), dry and wet dust cleaner motor (BY-PASS). Dust cleaner motor is composed of two parts: the motor part and the fan part, because the dust cleaner motor on the speed is very high, generally in 20,000-30000 revolution per minute, so the motor is mainly used in series motor, also known as series motor.
We supply electric motor including induction motor and DC motor and so on. Owing its superior quality and reasonable price, our product has met with warm reception and quick sale in most European countries.
2. Product Parameter of the AC universal motor
Specification | Model | TW-107 | TW-107 | Tolerance Value |
Voltage(V) | 220 230 240 100 110 120 | 220 230 240 100 110 120 | / | |
Frequency(Hz) | 50/60 | 50/60 | / | |
Input (W) | 400 | 600 | ±10% | |
Max Vacuum Degree(KPa) | 16 | 17.5 | -5% | |
Max Air Quantity(m3/min) | 1.6 | 1.8 | -8% | |
Temp.Rise(K) | <75 | <75 | / | |
Noisy(dB) | 90 | 92 | / | |
Sparkle Grade | <2 Level | <2 Level | / | |
Insulation Grade | B | B | / | |
Max Eff.(%) | 36.5 | 36.5 | -10% |
Specification | Model | TW-107 | Tolerance Value |
Voltage(V) | 220 230 240 100 110 120 | / | |
Frequency(Hz) | 50/60 | / | |
Input (W) | 800 | ±10% | |
Max Vacuum Degree(KPa) | 18.5 | -5% | |
Max Air Quantity(m3/min) | 2.4 | -8% | |
Temp.Rise(K) | <75 | / | |
Noisy(dB) | 92 | / | |
Sparkle Grade | <2 Level | / | |
Insulation Grade | B | / | |
Max Eff.(%) | 36.5 | -10% |
3. Product Feature And Application of the AC universal motor
Typical Application Examples: vacuum cleaner motor
Characteristics: High speed, high torque and reliable running.

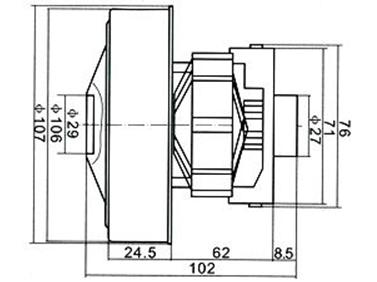

4. Production Details of the AC universal motor
The motor size and motor material can be designed by request
Custom design: Welcome
5. Product Qualification of the AC universal motor
Certificate: CCC.ROHS. CE. UL. Etc
According to customer requirement
6.Deliver, Shipping And Serving of the AC universal motor
Loading port: Any port in China
Place of origin: Guangdong China
Sample lead time: 7-15 days
MOQ: 50 pcs. according to unit price and customer request
7.FAQ
Q:Do you provide the samples?
A:YES. Our company can provide the samples to you, and the delivery time is about 5-15days according to the specification of gearbox you need.
Q:What parameter should I provide before the sample making?
A:Good question. Normally we need to know the Nominal Voltage, Free-load Speed, On-load Torque, On-load Speed, Rotation Direction, Shaft Diameter and Length. If there is other special requirement, please let us know in advance, such as working current limits, EMC limits, noise limits, expected lifetime and shaft process (D-shape, multi-knurls, mounting holes etc).
Q: what is your after-sales Service?
A:one year warranty for all kinds of products; If you find any defective accessories first time, we will give you the new parts for free to replace in the next order, as an experienced manufacturer, you can rest assured of the quality and after-sales service.
Q:Do you have motors in stocks?
A: No, all motors are made according to the customers' requirements, so it is difficult for us to make in stocks.
Q: Which shipping way is available?
A: DHL, UPS, FedEx, TNT, EMS, China Post,Sea are available.
The other shipping ways are also available, please contact us if you need ship by the other shipping way.
