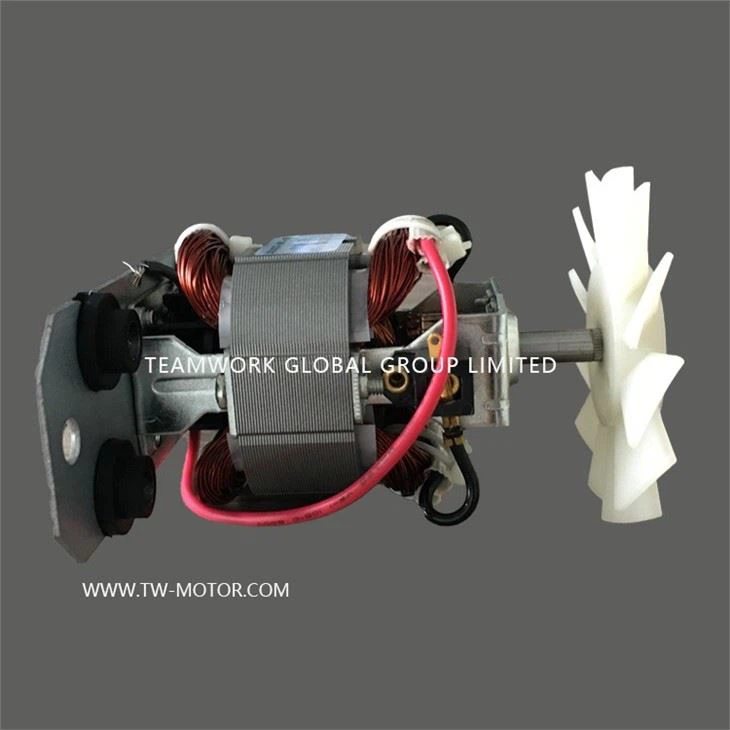

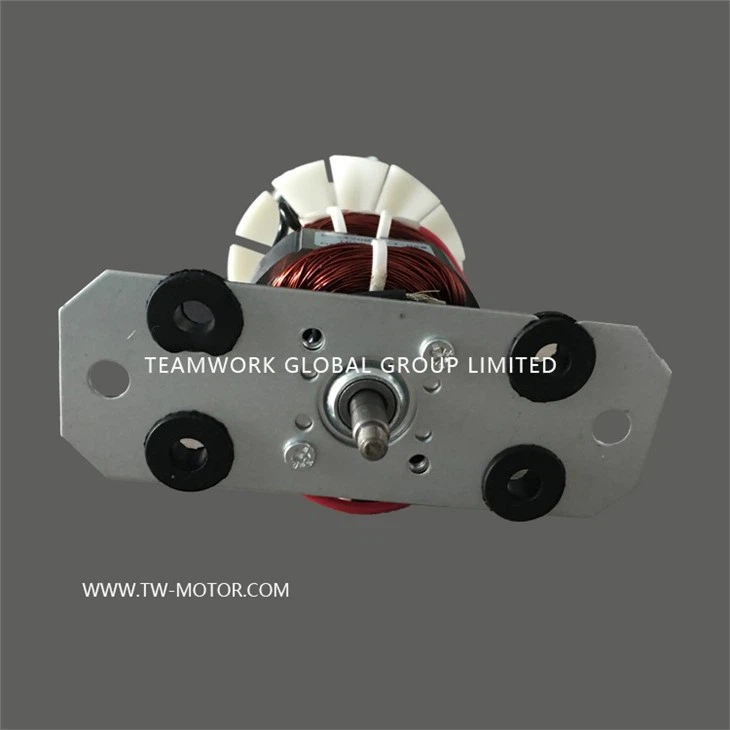

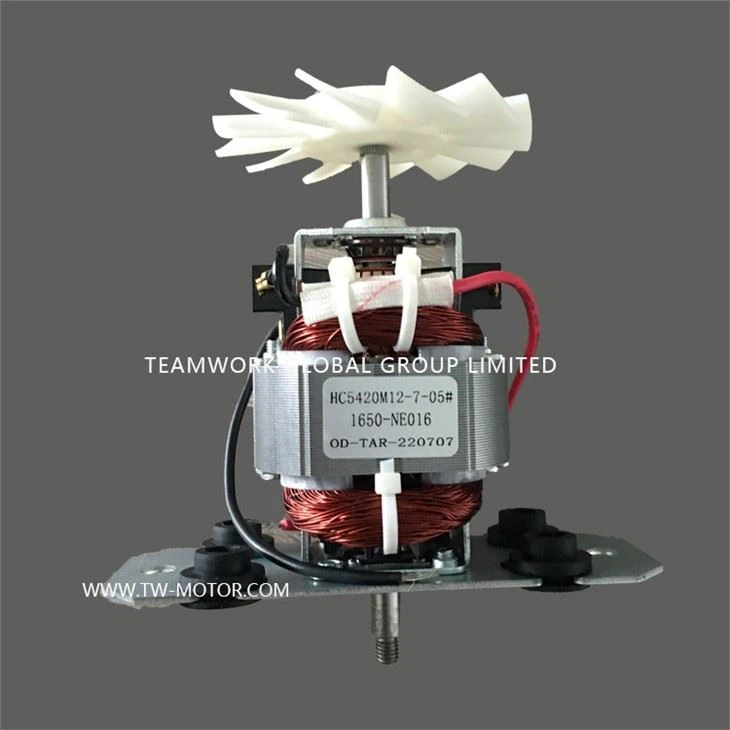

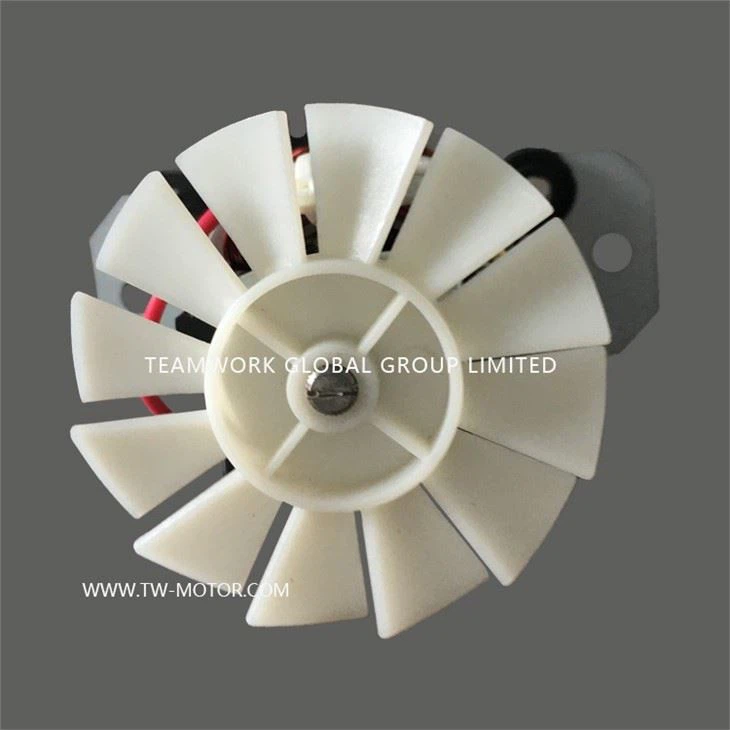

TW UM5420
Classification：Universal Motor
Application： Hairdryer, Mixer, Blender, Coffee Mill, Electric Knife, Electric Driller, Grinder, etc.
Notes: The motors can be designed according to customer requirements
We have been producing motors for more than 20 years,We own our four factories in SHENZHEN ,HUNAN ,DONGGUAN .
All kinds of motors we can customize ,It can be used to most of ur product ,We have an absolute advantage in the motor with our best price .
Technocal specification
Product Description
| Product Name: | AC Single phase series motor |
| Model No. : | 54-20 |
| Brand: | TW |
| Application: | For Juicer/Food Processor/Food Mixer/Blender |
| Starting Mode | Direct on-line Starting |
| Rated Voltage: | 100V 110V 120V 127V 220V 230V 240V |
| No-load Power: | 50-150W |
| No-load Speed: | 13000-32000rpm |
| Load Power: | 100-300W |
| Load Speed: | 22000rpm |
| Rotation Direction: | CW/CCW |
| Insulation Class: | A/E/B/F |
| Packing: | foam&carton,or accroding to customers' specific requirements |
| MOQ: | 50000 pcs |
| Delivery Time: | Depends on quantity from 2 weeks to 4 weeks. |
Remarks:
- The performances as above are just for reference only. We can adjust our motor specifications according to customer's requirements.
- OEM & ODM are both available. Please feel free to contact us with your detailed requirements .
- If ask for quotation, please tell voltage, draft, input power, air flow at least, so we could quote fast.
FAQ
Q: What is the major difference between a spur gear motor and a planetary gear motor?
A: Generally speaking, the planetary gearing structure is much stronger than a spur one. Therefore, a planetary gear motor endures much higher torque than a spur gear motor in equivalent size.
Q: What is delivery time for a sample?
A: It depends, normally 1~2 weeks.
Q: What is delivery time for mass production?
A: 3~4 weeks if there is no additional requirements.
Q: What is the MOQ (minimum order quantity)?
A: :Our MOQ is 500pcs.According to unit price and customer request.
Q: Do you have quality control?
A: Yes, it is a must. We do 100% inspection on all motors.
Q: Do you have warranty?
A: Yes, one year.
Q: Are you a real factory?
A: Yes, we are.
Q: How much does a sample cost?
A: We don't expect to make any profit from samples. Please contact us and we'll let you know.
Q: What are your payment terms?
A: 30% deposit, balance due before shipment or against shipping documents.
Q: Do you accept PayPal?
A: Yes, but for samples and for small amount of money only.
Q: How do you handle shipment?
A: a) For samples and small batches, we recommend FedEx and UPS express door to door. It is very fast, safe and convenient.
b) For mass production, we recommend shipment by sea and by airfreight and go with FOB/CIF/CFR terms.
Q: I don't know too much about motor, can you recommend me a motor?
A: Sure. Normally we will ask you some questions regarding application, dimensions, rated voltage, speed at load/no load, torque at load/stall. i.e. a robot motor with diameter 37mm, 12V, 100rpm and 2Kgf.cm at load.
Q: How do I contact you?
A: Skype me, call me, or email me directly by scanning the QR code.
