High Torque Treadmill Motor

High Torque Treadmill Motor

A treadmill is an indoor cardiopulmonary exercise machine that typically consists of an energy platform with straps, a screen, a handle, and a control panel. It helps athletes perform aerobic exercises such as running, walking and climbing. At the same time, it can perform functions such as heart rate monitoring and calorie intake. The effects of treadmill exercise are more accurate and effective than regular outdoor exercise and you can monitor your fitness at any time. Suitable for domestic and commercial appliances. Different makes and models of treadmills have different functions and prices. It is better to understand and compare them before using them and choosing the right device for you.

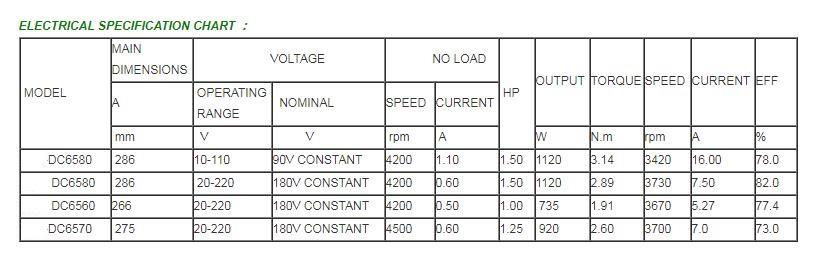

1. Product Parameter of the T65 High speed dc motor



MODEL	MAIN DIMENSIONS	VOLTAGE		NO LOAD		HP	OUTPUT	TORQUE	SPEED	CURRENT	EFF
	A	OPERATING RANGE	NOMINAL	SPEED	CURRENT
	mm	V	V	rpm	A		W	N.m	rpm	A	%
DC6580	286	10-110	90V CONSTANT	4200	1.10	1.50	1120	3.14	3420	16.00	78.0
DC6580	286	20-220	180V CONSTANT	4200	0.60	1.50	1120	2.89	3730	7.50	82.0
DC6560	266	20-220	180V CONSTANT	4200	0.50	1.00	735	1.91	3670	5.27	77.4
DC6570	275	20-220	180V CONSTANT	4500	0.60	1.25	920	2.60	3700	7.0	73.0



2. Product Feature And Application of the T65 High speed dc motor



The typical application of the T65 High speed dc motor.

1).Diameter:103mm

2).Voltage:180V

3).Power:0.75HP~2.0HP



3. Production Details of the T65 High speed dc motor



The motor size and motor material can be designed by request

Custom design: Welcome





4.Features



1. Tranquility



Most traditional treadmills are noisy and uncomfortable. The running motor adopts an efficient magnetic control system, which can provide quiet and smooth movement and reduce the impact of noise on the surrounding environment and people.



2. Efficiency



The running motor provides an efficient running experience. Whether it is moving at low speed or high speed, it can provide a large amount of sports energy stably.



3. Durability



The running motor is made of high-strength materials and has a long life. The motor in the treadmill usually has an adjustable small spark, which can be maintained in good working condition for a long time through maintenance and adjustment.



4. Versatility



Modern treadmill motors are versatile enough to meet a variety of fitness needs. Some high-end running motors also use intelligent control systems, which can monitor and calculate exercise data, and can be interconnected with mobile phones or tablet computers to provide fitness enthusiasts with a more convenient exercise experience.



5. Energy saving



Since the running motor adopts an efficient magnetic control system, the power consumption of the motor is low during operation, so it has the advantage of saving energy.



6. Adjustable resistance



The resistance of the treadmill motor can be adjusted through the controller, and users can adjust the resistance of the treadmill according to their own fitness needs to achieve the best fitness effect.



5. Production Qualification



Many of our products have been GS, CE, EMC certification

According to customer requirement



6. Deliver,Shipping,Serving



Transportation: By air or vessel,according to customer request

Place of origin: Guangdong China Loading port: SHENZHEN port

Packing: Good quality exporting packing style



7. FAQ



Q: Why DC motor is used in treadmill?

A: Because the DC motor has the advantages of high reliability, convenient speed control, high starting torque, low noise, and strong motor speed, it can be perfectly satisfied for various users and different sports demands, in normal conditions, the running machine has a greater horsepower motor will with the higher.



Q: What is the difference between HP and CHP?

A: The difference between these two measurements is that CHP shows the power level a treadmill is capable of holding for a continuous period, while the maximum horsepower is simply its peak limit.



Q: Why use DC motor instead of AC motor?

A: Because DC motors have higher starting torque compared to AC motors, they are preferred for applications like electrical traction. They are considered ideal for dealing with heavy loads for starting conditions in machines such as locomotives and cranes.



Q: How to choose a treadmill motor?

Treadmill Motor Horsepower
A: To make it easy, look for a motor with at least 1.5 continuous-duty horsepower (CHP). If you plan on running on the treadmill frequently, you'll be better off choosing 2.5 to 3.0 CHP. You will also need a more powerful motor depending on your weight.
