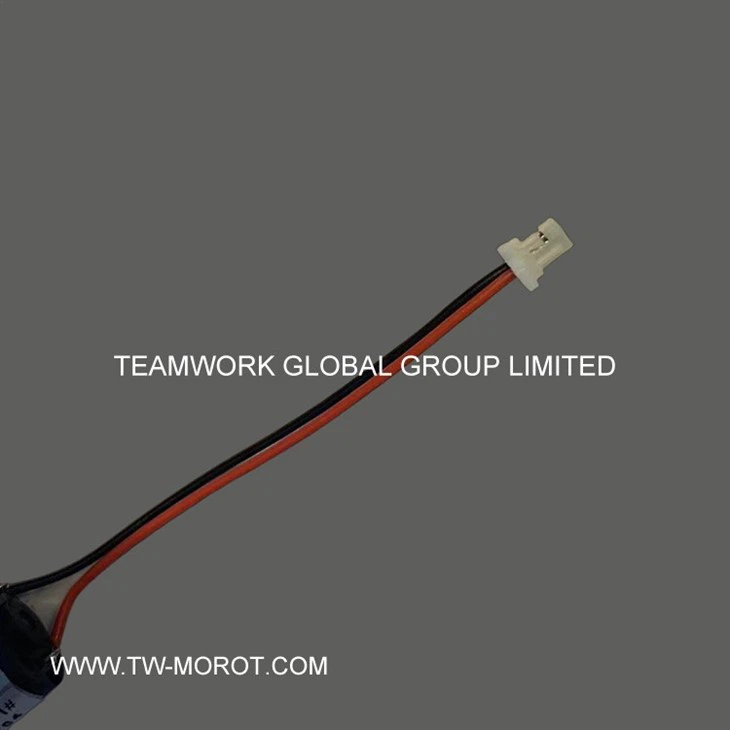

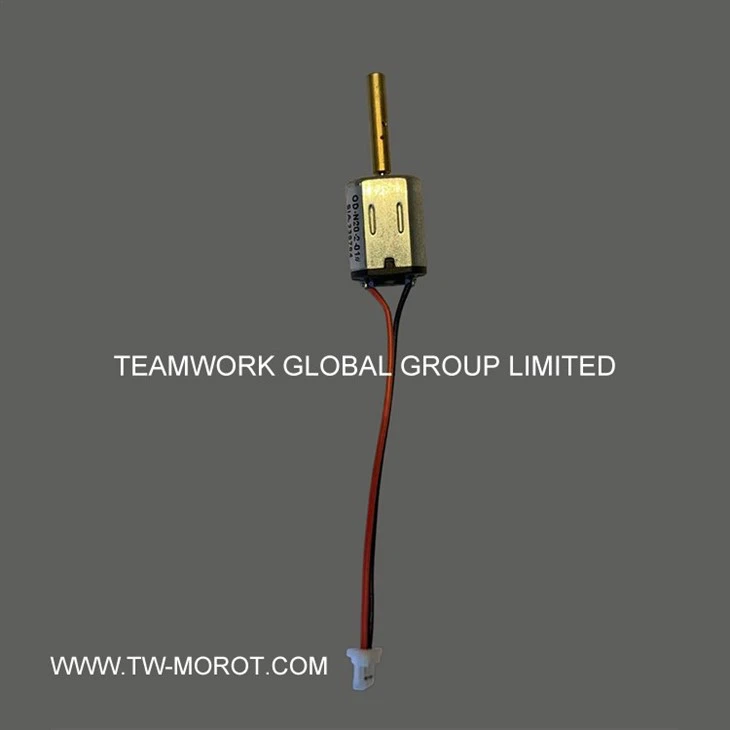

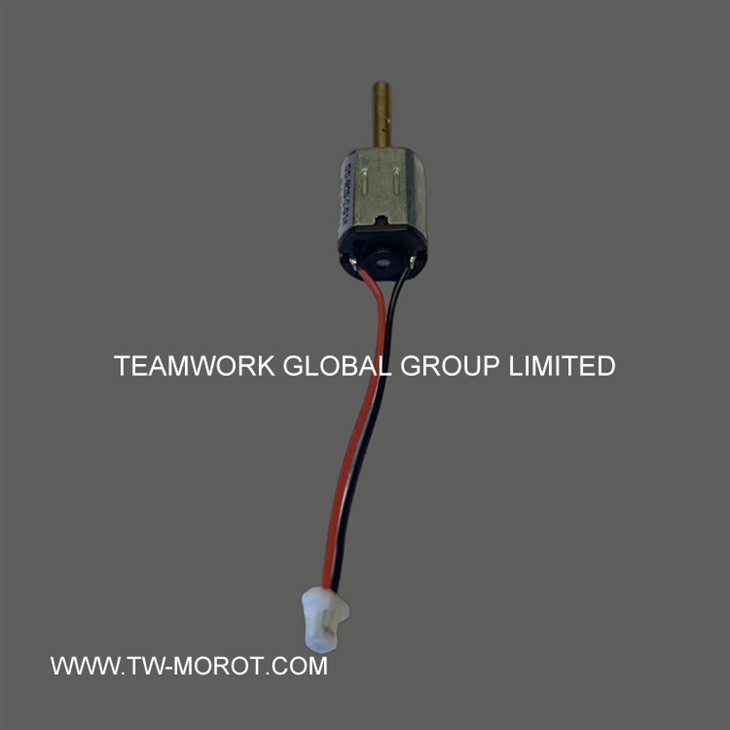

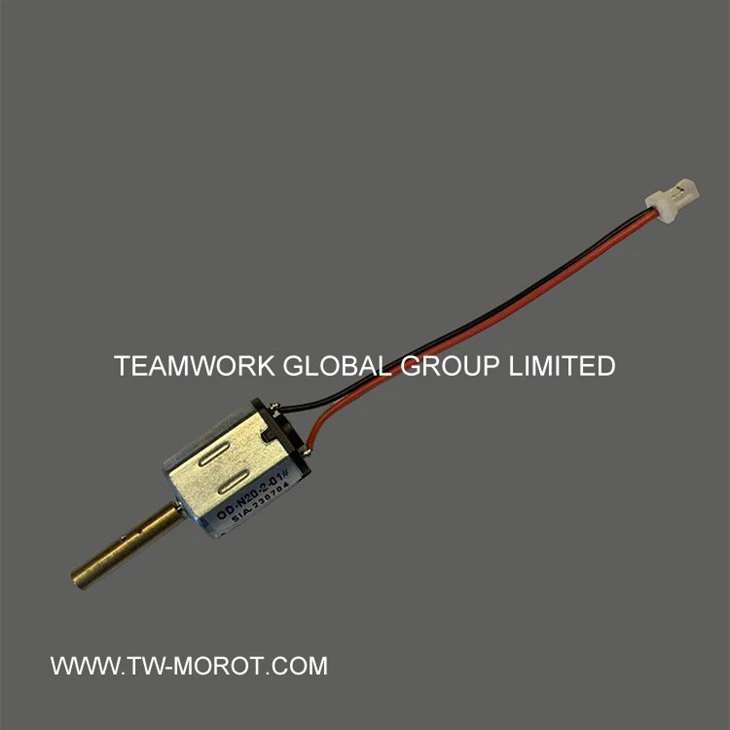

Smart Door Lock Motor

Smart door lock motor



The motor of the smart door lock is mainly composed of several parts such as motor driver chip, reducer, sensor and power supply. The motor driver chip is the control center of the motor. It starts, stops, forwards and reverses the motor by receiving signals. The main function of the reducer is to reduce the speed of the motor and increase the torque so that the door lock can push the lock tongue into the door frame more easily. The sensor is responsible for detecting the status of the door lock, such as whether the door lock has been opened or closed. The power supply powers the motor.





1.Product Introduction



The N20 DC motor is a small motor, usually around 10mm in size, and is widely used in robotics, smart devices, consumer electronics and medical equipment.



2.Features



1. It has the advantages of small size and light weight. Due to the very small size and weight of the N20 motor, it is very convenient to assemble it into some small equipment, and at the same time, the N20 motor can also fit well in the compact space of the small equipment.



2.The N20 motor has high working efficiency and can output larger torque. The precise calculation between the iron core and the coil of the N20 motor makes the efficiency of the motor reach a high level, and the N20 motor also performs well in terms of output torque. At the same time, since the N20 motor is powered by a DC power supply, it can output greater torque at a lower rotational speed.



3.The repair and maintenance of N20 motors are relatively simple. Due to the simple design and standardized components of the N20 motor, it is more convenient to replace parts, and there are more accessories and replacement parts to choose from. Therefore, the care and maintenance of the N20 motor after long-term operation is relatively simple.



4. The N20 motor is also very suitable for experimental teaching and DIY production. Because of its small size and light weight, it can be easily used in the production of small electric vehicles, model aircraft, robots, etc.







3.Daily maintenance and maintenance



1. Clean

During use, the surface of the motor will generate certain dust and dirt due to friction. If the dirt is not cleaned up in time, it will have a great impact on the normal operation of the motor. Therefore, when maintaining and maintaining the motor, it is first necessary to keep the motor clean and clean it regularly.



Cleaning Guide: Use a clean soft brush to gently wipe away the dirt and grime on the surface of the motor. Be careful not to let water or other liquids directly come into contact with the inside of the motor. When cleaning, you can use a cleaning cloth to gently massage the oil on the motor casing, or use a vacuum cleaner to clean it.



2. Lubrication

After long-term use, the lubricant inside the DC motor N20 will gradually lose, resulting in unstable rotation of the motor and increased operating noise. Therefore, it is necessary to lubricate the inside of the motor in time.

Lubrication Guide: Add special lubricating oil to the bearing of the motor to ensure the good running state of the motor. Usually every 3 months, the motor needs to be lubricated and maintained.



3. Maintenance

If the DC motor N20 is found to be malfunctioning or operating abnormally, it needs to be repaired in time. For specific operations, you can find professional maintenance personnel to handle it, or follow the steps in the motor manual for self-maintenance.

Maintenance guide: During maintenance, it is necessary to disassemble the motor, observe the damage of the internal parts of the motor, and replace it as soon as possible. If you are inexperienced, do not attempt dismantling yourself.



4.FAQ



Q: What is the rated voltage of the N20 motor?
Answer: The rated voltage of the N20 motor is generally 3V-6V, which is different for different models. In practical applications, the voltage can be adjusted as needed to achieve the appropriate speed and torque.



Q: What is the working principle of N20 motor?
Answer: The working principle of the N20 motor is to convert electrical energy into mechanical energy through the principle of electromagnetic induction, thereby generating rotation. When energized, the current passes through the wire and the iron core to generate a magnetic field, which drives the motor rotor (usually a multi-pole magnet) to rotate. Due to the internal resistance of the motor itself and the influence of the load, the speed of the motor will decrease and a certain torque will be generated. Therefore, parameters such as voltage, speed, and torque need to be considered when selecting a motor.



Q: What are the precautions for N20 motor?
Answer: When using N20 motor, the voltage, speed and torque need to be adjusted according to actual needs. Excessive voltage or load can cause the motor to overheat or burn out. At the same time, you need to pay attention to the ambient temperature and humidity of the motor to prevent the motor from being immersed in or exposed to water. In addition, when disassembling or assembling the motor, care should be taken not to damage the motor coil or rotor, so as not to affect the normal operation of the motor.
