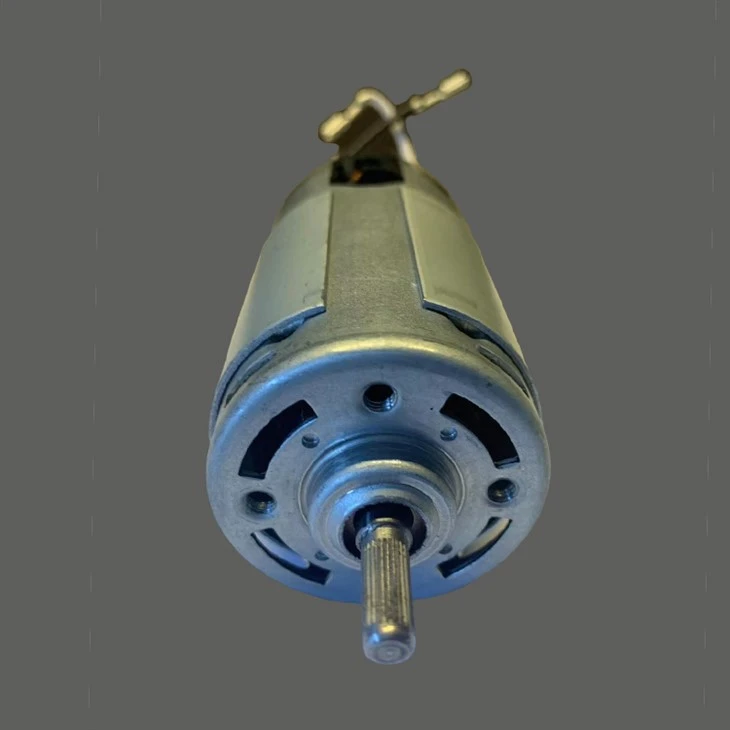

Electric Drill Motor

Electric Drill Motor

The working principle of the electric drill motor is based on the principle of electromagnetic induction. The stator is wound with a copper coil and generates an electromagnetic field when energized. This electromagnetic field rotates because the current changes continuously. Under the action of the electromagnetic field of the stator, the copper coil wound around the rotor also generates an electromagnetic field, which rotates in the rotor. However, since the electromagnetic field directions of the copper coils in the rotor and the copper coils in the stator are different, the rotor will continue to rotate until the stator current is turned off. This rotational motion gives the drill's RPM.

The electric drill motor consists of a motor body, a stator, a rotor, a transmission device, etc. Among them, the motor body is the main body of the electric drill motor and also the casing of the motor. The stator is responsible for generating a rotating magnetic field, and the rotor rotates according to the magnetic field of the stator to convert electrical energy into mechanical energy. The transmission device is responsible for converting the movement of the rotor into the rotational movement of the drill bit.

1.Features

The main features of electric drill motors are as follows:

1. Low speed and high torque: The low speed and high torque of the electric drill motor is very suitable for drilling. Even before the development of high-speed gears, low-speed and high-torque electric drill motors can already provide people with a very good drilling experience.

2. Easy to control: Since the rotation speed of the electric drill motor is controlled by the input voltage and the number of coils, its rotation speed can be easily controlled. This makes it perfect for delicate jobs like adjusting toilet seats, installing door locks, and more.

3. Compact structure: The compact structure of the electric drill motor makes it very suitable for machining and manufacturing. This also makes electric drill motors an important part of various tools.

2.Maintenance methods

1. Clean the electric drill motor regularly

The motor part of the electric drill will inevitably accumulate dust and impurities. These substances will block the operation of the motor parts and affect the efficiency and life of the electric drill. Therefore, we recommend cleaning the electric drill motor regularly to avoid the influence of dust. The following points should be noted when cleaning:

1. Disassemble the electric drill bit, and remove the casing and motor of the electric drill
2. Clean the motor and electronic circuit board by scrubbing with warm water or spraying detergent
3. To clean small parts such as motor bearings, gears and frames, you can use cleaning oil to wipe them
4. After cleaning, spray a small amount of detergent to the motor part again to keep it dry and dust-free

2. Replace carbon brushes regularly

Carbon brushes are important running parts of electric drill motors and are used to transmit current and control motor speed. The accuracy and life of the electric drill motor are directly related to the quality of the carbon brush. Therefore, regular replacement of carbon brushes is a key step in maintaining your electric drill motor. The following points should be noted:

1. Regularly check the wear degree of carbon brushes and replace them in time if serious wear is found.
2. Select and use good quality carbon brushes
3. Remember to clean the carbon brush groove when replacing the carbon brushes

3. Keep the drill dry

The motor part of the electric drill and the electronic circuit board are electrical components and need to be kept dry. In any case, the electric drill should be kept away from water sources and humid environments. After using the electric drill, the electric drill should be placed in a ventilated and dry place in time to prevent the motor from getting wet, causing short circuit or damage.
