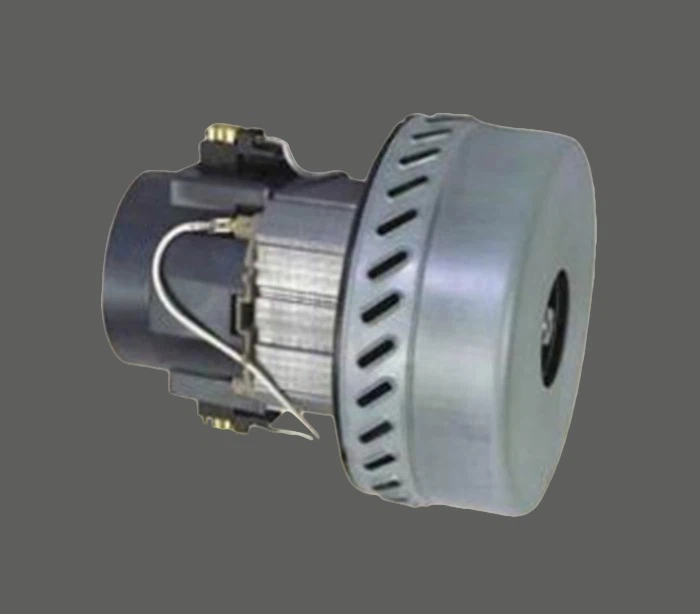

UM146-147 AC Universal Motor Vacuum Cleaner Motor

1. Product Introduction of the AC universal motor universal motor not only has the advantages of high torque at low speed, but also high efficiency at high speed, which satisfies the two requirements of low speed washing and high speed dewatering of the drum washing machine. We also supply...

    1. Product Introduction of the AC universal motor

    universal motor not only has the advantages of high torque at low speed, but also high efficiency at high speed, which satisfies the two requirements of low speed washing and high speed dewatering of the drum washing machine.  We also supply  medical device motor.


    2. Product Parameter of the AC universal motor


    Specification

    Model

    TW-147

    TW-147

    Tolerance   Value

    Voltage(V)

    220 230 240   100 110 120

    220 230 240   100 110 120

    /

    Frequency(Hz)

    50/60

    50/60

    /

    Input (W)

    1000

    1200

    ±10%

    Max   Vacuum Degree(KPa)

    19

    20

    -5%

    Max Air Quantity(m3/min)

    3

    3.1

    -8%

    Temp.Rise(K)

    <85

    <85

    /

    Noisy(dB)

    96

    98

    /

    Sparkle Grade

    <2 Level

    <2 Level

    /

    Insulation Grade

    B

    B

    /

    Max Eff.(%)

    33

    33

    -10%


    Specification

    Model

    TW-146

    TW-146

    Tolerance   Value

    Voltage(V)

    220 230 240   100 110 120

    220 230 240   100 110 120

    /

    Frequency(Hz)

    50/60

    50/60

    /

    Input (W)

    1400

    1600

    ±10%

    Max Vacuum Degree(KPa)

    24

    25

    -5%

    Max Air   Quantity(m3/min)

    3.3

    3.4

    -8%

    Temp.Rise(K)

    <85

    <85

    /

    Noisy(dB)

    98

    100

    /

    Sparkle   Grade

    <2 Level

    <2 Level

    /

    Insulation   Grade

    B

    B

    /

    Max Eff.(%)

    35

    35

    -10%


    3. Product Feature And Application of the AC universal motor

    Typical Application Examples: vacuum cleaner motor

    Characteristics: high torque, low speed,  high efficiency, high speed


    4. Production Details of the AC universal motor

    The motor size and motor material can be designed by request

    Custom design: Welcome



    5. Product Qualification of the AC universal motor

    Certificate: CCC.ROHS. CE. UL. Etc

    According to customer requirement


    6.Deliver, Shipping And Serving of the AC universal motor

    Loading port: Any port in China

    Payment terms: 30% T/T deposit, 70%T/T before shipment or Full L/C at sight

    Place of origin: Guangdong China

    In production, we demand not only quantity but also quality.



    7.FAQ

    Q: What is the warranty of the motors?

    A: The warranty is 6 months on the production date, under the warranty we will afford the shipping cost to send the replacement. It also depends on our contract details.

    Q: what is your MOQ?

    A: 100pcs, support LCL, FCL. It also depends on different models

    Q: What is your delivery date?

    A: The delivery date is about 25-30 days after receipt of payment.

    Q: Can you send free samples?

    A: Sorry. You need to pay the sample fee and courier fee. But we can return samples and courier fees according to certain order quantity.
