DC360SP 3.0 v - 24 v Micro carbon brush dc motor for electronic typewriter

DC360SP 3.0 v - 24 v Micro carbon brush dc motor for electronic typewriter

We are 3.0 v - 24 v micro Carbon brush DC motor SHENZHEN supplier. We have been in the electric motors over 20 years, obtained a number of technology patents. We are also supply electric tools motor and motor type. 1.Product Introduction of the 3.0 v - 24 v micro Carbon brush DC motor 3.0v-24v...

    We are 3.0 v - 24 v micro Carbon brush DC motor SHENZHEN supplier. We have been in the electric motors over 20 years, obtained a number of technology patents. We are also supply electric tools motor and motor type.


    1.Product Introduction of the 3.0 v - 24 v micro Carbon brush DC motor

    3.0v-24v micro Carbon brush DC motor is Our flagship product.  The length can be designed according to request. We have been in the electric motors over 20 years, obtained a number of technology patents. We are also supply electric tools motor and  type motor.

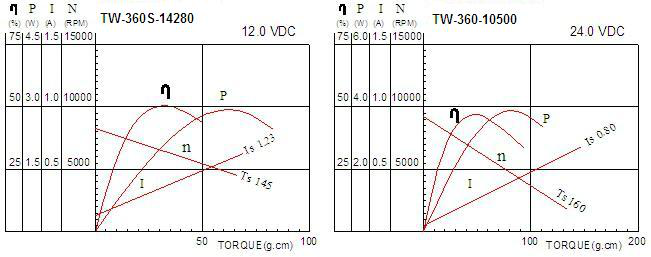

    2.Product Parameter of the 3.0 v - 24 v micro Carbon brush DC motor

    Model

    At No Load

    At Max Efficiency

    Stall
         Torque

    Nominal

    Current

    Speed

    Current

    Torque

    Output

    Eff

    RPM

    A

    RPM

    A

    G.CM

    W

    %

    G.CM

    TW-360SP-10500

    3,500

    0.05

    2,500

    0.14

    28.0

    0.72

    42.9

    108

    TW-360SP-10340

    9,984

    0.12

    8,200

    0.15

    42.0

    3.53

    59.0

    235

    TW-360SP-12295

    11,730

    0.12

    9,580

    0.36

    55.0

    5.40

    62.5

    300

    TW-360SP-14280

    6,300

    0.09

    5,000

    0.34

    42.0

    2.15

    52.7

    214

    TW-360SP-2885

    12,500

    0.36

    11,000

    1.30

    50.0

    5.64

    60.0

    420


    3.Product Feature And Application of the 3.0 v - 24 v micro Carbon brush DC motor

    Precision Instruments:
    Automatic Vending Machine.

    Household Appliances:
    Tooth Brushes, Hair Dryer, Massager

    Office Automation Equipments:
    Electronic Typewrite


    4.Production Details of the 3.0 v - 24 v micro Carbon brush DC motor

    The motor size and motor material can be designed by request
    Custom design:Welcome


    5.Product Qualification of the 3.0 v - 24 v micro Carbon brush DC motor

    Certificate:CCC.ROHS.CE.UL.Etc


    6.Deliver, Shipping And Serving of the 3.0 v - 24 v micro Carbon brush DC motor

    Packing details: CTN size:36.5X31XH17 cm 60pcs/CTN G.W.12 Kgs
    Sample lead time: 7-15 days
    Loading port: Any port in China
    Place of origin: Guangdong China
    Production lead time: 15-40 days after receipt of approval samples and receipts


    7.FAQ

    Q:Are these motor's parameter from the above list can be modified?
    A:Yes, motor's parameter can be customized. We can modify the motor's working voltage, rated speed, torque etc, and motor's shaft dimension can be modified too. We are pleased to make those modification, the more details you provide, the more fluent our cooperation will be.
    Q:Sometimes I don't know the exact required parameter, how should I choose a suitable model?
    A:We can make some suggestions as long as you provide your specific requirement. We need to know what kind of product will be this model used for? And what does the working condition look like (duty cycles and load status)?  And how long is the motor's expected lifetime? etc. Then we can a make full assessment according to that.
    Q:Does the motor can retail?
    A:Sorry, it doesn't. Our minimum order quantiy is 100pcs.
    Q:What is the weight of each motor?
    A:Each motor's weight will be 50 g/pcs (APPROX).
