UM9540 AC Universal Motor For Breaking Machine

UM9540 AC Universal Motor For Breaking Machine

Model: TW-UM95 Series
Product Classification: Universal Motor
Typical Application: Breaking machine, High speed blender,Grinder, etc..
Notes: The motors can be designed according to customer requirements

Chat Now

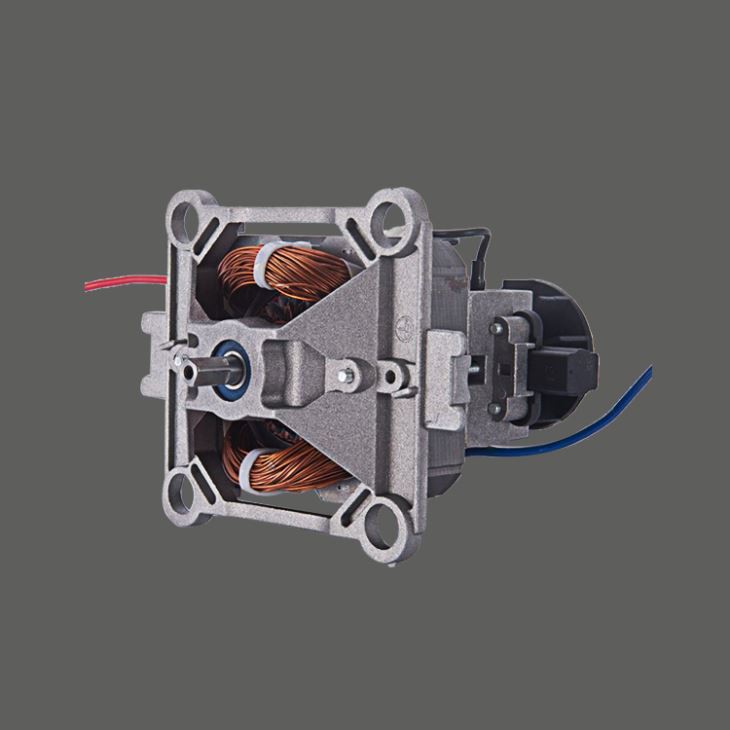

    UM9540 AC universal motor for Breaking machine

    Our company is located in SZ and is specialized in manufacturing electric motors. With an experience and professional team, we have exported our products to many countries and regions all over the world, especially European countries. Our products enjoy a good reputation among our customers.


    1. Product Introduction of the AC universal motor

    The dimension is 95.0x40 mm .But the motor length can be designed according to request. Our advantages of high-quality products and excellent service have won great kindness from the market and customers.

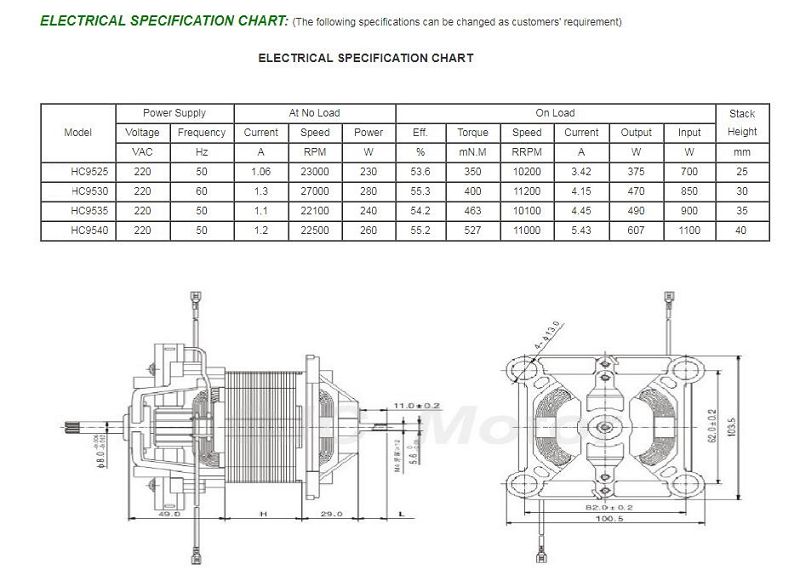

    2. Product Parameter of the AC universal motor

    Model

    voltage

    At No Load

    No Load

    Stack
    Height

    speed

    current

    speed

    current

    output

    V

    RPM

    A

    RPM

    A

    W

    mm

    UM9525

    220

    23000

    1.06

    10200

    3.42

    375

    25

    UM9530

    220

    27000

    1.3

    11200

    4.15

    470

    30

    UM9535

    220

    22100

    1.1

    10100

    4.45

    490

    35

    UM9540

    220

    22500

    1.2

    11000

    5.43

    607

    40



    3. Product Feature And Application of the AC universal motor

    FEATURES:

    1). Brackets can be either metal or aluminum. Its height can be changed.
    2). Shaft length (B, D) can be any as customers'needs.
    3). Mounting holes size and distance can be any as customers'needs.
    4). Motor rotation direction can be CW or CCW.


    4. Production Details of the AC universal motor

    The motor size and motor material can be designed by request

    Custom design: Welcome



    5. Product Qualification of the AC universal motor

    Certificate: CCC .ROHS .CE .UL .Etc

    According to customer requirement


    6. Deliver, Shipping And Serving of the AC universal motor

    In production, we demand not only quantity but also quality

    MOQ: 50pcs.according to unit price and customer request

    Sample lead time: 7-15 days

    Production lead time: 15-40 days after receipt of approval samples and receipts


    7. FAQ

    Q: Have sewing motor 100% assembled well in stock?

    A: Yes, all sewing motor is available.

    Q: What's your company's main product?

    A: Our company is specialized in AC three phase motor and single phase motor.

    Q: What's your payment term?

    A: 30% T/T in deposit, the rest against on the copy of B/L. We also accept PayPal and West union.

    Q: What's the MOQ for your production?

    A: The MOQ is 100pcs or depends on your products requirements.
